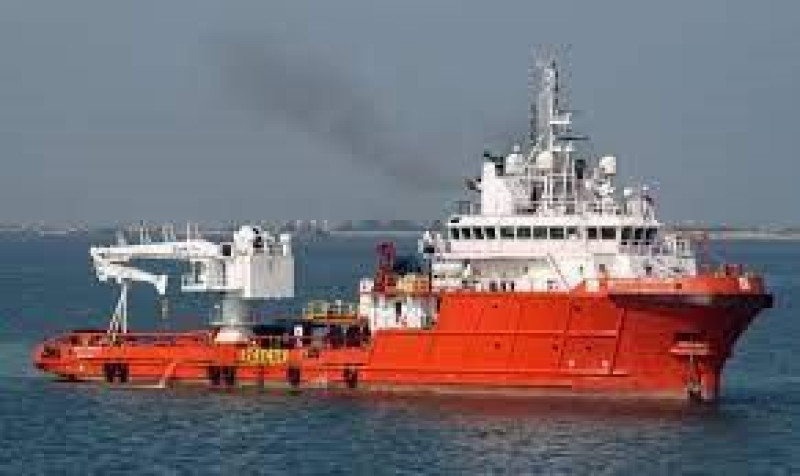

DP2 AHST Supply

VESSEL INFO

• Offer type Ship for sale

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Year of construction 2008

• Length 70m

• Width 16m




• Asking price $ 6 400 000


DESCRIPTION

VESSEL MAIN PARTICULARS Type: AHTS / light OCV Vessel Design: SaSa Ship Pte Ltd Year Built: 2008 Yard Built: Jaya Asiatic Shipyard, Indonesia Classification: ABS Class Notes: +A1(E),Towing Vessel, Fire Fighting Vessel, Class 1, AMS, DPS-2 PRINCIPAL DIMENSIONS LOA: 70.05 m/229 ft 8 in LPP: 64.35 m/211 ft 2 in Beam: 16.00 m/52 ft 6 in Min Draft: 3.26 m/10 ft 8 in Summer draft: 6.10 m/20 ft 1 in Airdraft: 29.0 m/95 ft 2 in Deadweight: 2,585.36 mt Lightship: 2,272.68 mt Gross tonnage: 2,386.00 mt Net tonnage: 715 mt Bollard Pull: 140 mt ACCOMODATION Total number of bunks: 60 Single Berth Cabins: 4 4 Berth Cabins: 13 Mess Room: 1 Rec Room: 1 Number of Marine Crew: 12 PROPULSION Main Engines: 2 x Wartsila 9L26A Diesels 2,925 KW/each Total Output: 5,850 KW/7,839 HP Bow Thrusters: 2 x 515 KW/690 HP Kawasaki KT-72B3 CPP, Tunnel Type (CPP); 8 mt Thrust Stern Thrusters: 1 x 515 KW/690 HP Kawasaki KT-72B3 CPP Shaft Generators: 2 x 1,800 kw Aux Generators: 2 x 370 kw EM Generator: 1 x 72 kw CARGO CAPACITY SUMMARY Fuel Oil: 1,062 m3, @ 100%. Base Oil: Mud Tanks Can Be Used Fresh Water: 616 m3, @ 100%. Drill Water: 415 m3, Liquid Mud: 645 m3, Brine: Mud Tanks Can Be Used Dry Bulk: 200 m3 Clear Deck Space: 475 m2 DECK EQUIPMENT Offshore Deck Crane: 1 x 20 mt @ 20 m KDE 400 ADC Elbow Derrick Port Deck Crane: 1 x North Pacific Crane MCT1040, Telescopic Boom Crane, 2 mt @ 12 m / 5.9 mt @ 6 m Provision Crane: 1 x North Pacific MCT1040, Telescopic boom, 2 mt @ 12 m / 5.9 mt @ 6 m Tow/Work Winch: Type: Brattvaag SL200WX-B2T Low gear: Drive hoist first layer 200 mt @ 0 - 8 m/min, 100 mt @ 0 -2m/min Low gear: Lowering first layer 0 - 12 m/min Low gear: Dynamic braking first layer 38 - 250 mt @ 0 - 23 m/min Brake holding first layer 250 mt ANCHORHANDLING EQUIPMENT Anchor Handling Winch: 1 x Brattvaag Towing / AH Winch, Waterfall Type SL200WX-B2T Brake holding first layer 250 mt Shark Jaws: Kam Fork 130802, for wirre MBL up to 300 mt Spare shark jaw inserts 77 - 102mm, 61 - 85 mm, 50 - 65 mm, 32 46 mm. Towing Pins: 2 x Karm Towing Pins 130802, For Ships with Bollard Pull up to 160 mt Stern Roller Dim: 1,600 / 1,800 mm x 3,500 mm, SWL 250 mt Gypsy: Starboard side 76 mm Port side 81 mm Tugger Winch Capacity: 20 mm x 596 m Storage Winch Capacity: 1 x 58 mm x 1,523 m Hoisting power 7.7 mt @ 0 - 32 m/min RIG CHAIN LOCKERS: Chain lockers numbers & m3 Port 78 m3, Stb 71 m3 Capacity 76mm chain: Port 986.6 m, Stb 898.1 m (@ 80%) Capacity 76mm chain PS = 986.6 m, SB = 898.1 m (@ 80% Filling Capacity) Capacity 84mm chain Port 807.6 m, Stb 735.1 m (@ %) Capacity 84mm chain PS = 807.6 m, SB = 735.1 m (@ 80% Filling Capacity) Capacity 110mm chain PS = 471.0 m, SB = 428.7 m (@ 80% Filling Capacity) DYNAMIC POSITION SYSTEM Class Definition: DPS-2 Type: Kongsberg KPOS DP-21 + cJoy DGPS Kongsberg DPS 132 & DPS 232 Diff correction 2 x Seastar 3510 LR HPR 1 x HiPAP 500 Fanbeam Fanbeam 4.2 MDL Tautwire Bandak MK15 Transponders JOYSTICK: Type Kongsberg CJOY OT & CJOY Independent Connections points DP CJOY (4 points) & CJOY Independent (1 point) FIFI / DISPERANT SYSTEM Type: FFS external FiFi Fire Fighting Class: FiFi class 1 FIFI Capacity: 1,200 m3/hr @ 11 bar Throw Height/Length: 50 m / 120 m Monitor Type: FFS 1,200, Long barrel with remotely operated deflector Foam System Capacity: 15 m3 Dispersant System: Unitor spray boom, 12 x 3/4" full cone spray nozzle @ 120 deg. Dispersant Booms Length: 2 x 6 m Dispersant Capacity Tank: 15 m3 / 12 x 80l/min @ 0.7 bar STANDBY/RESCUE Searchlights: 4 Line Throwing Devices: 4 x Pain Wessex (line thrower 250)
