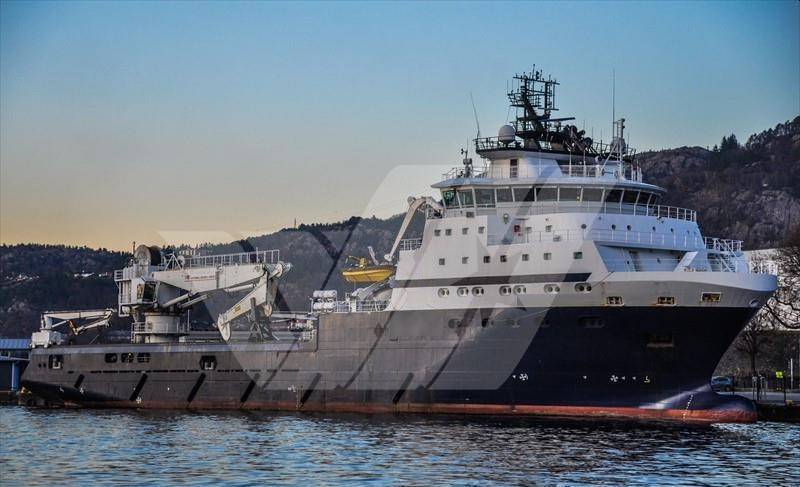

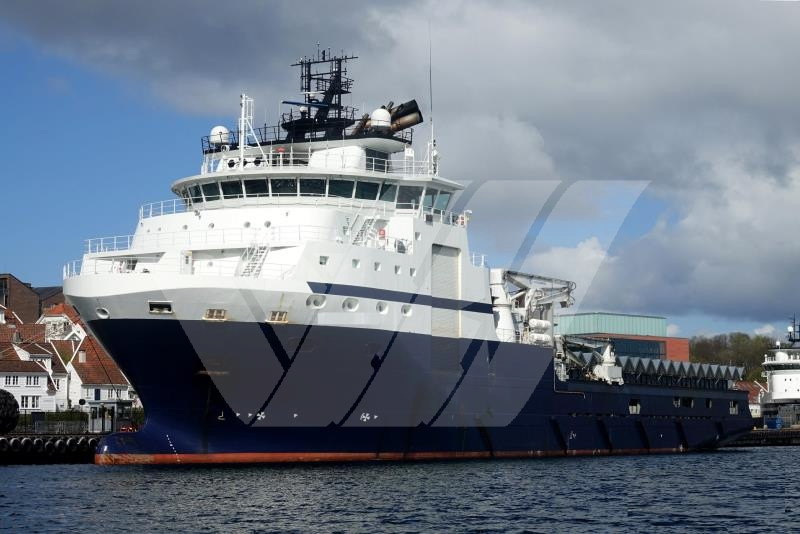

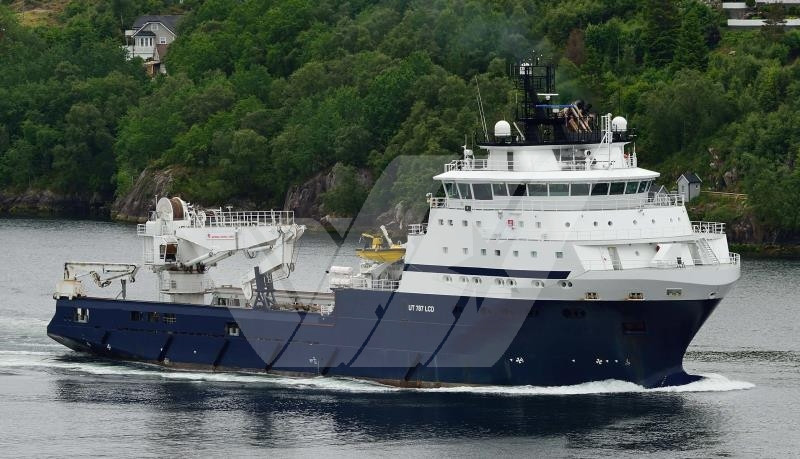

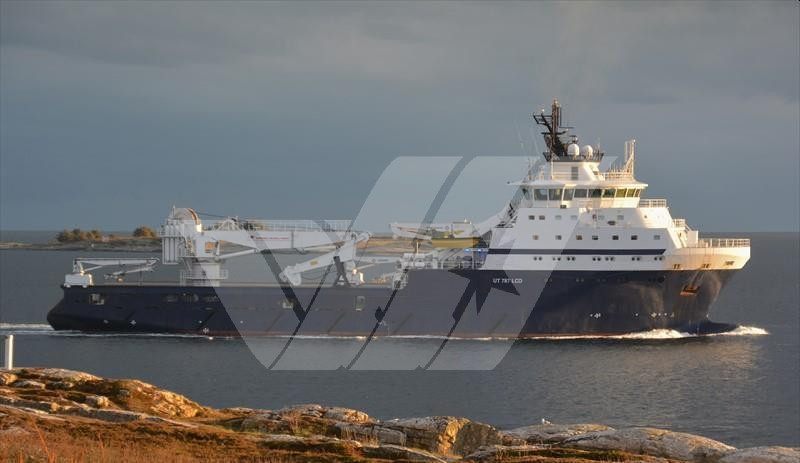

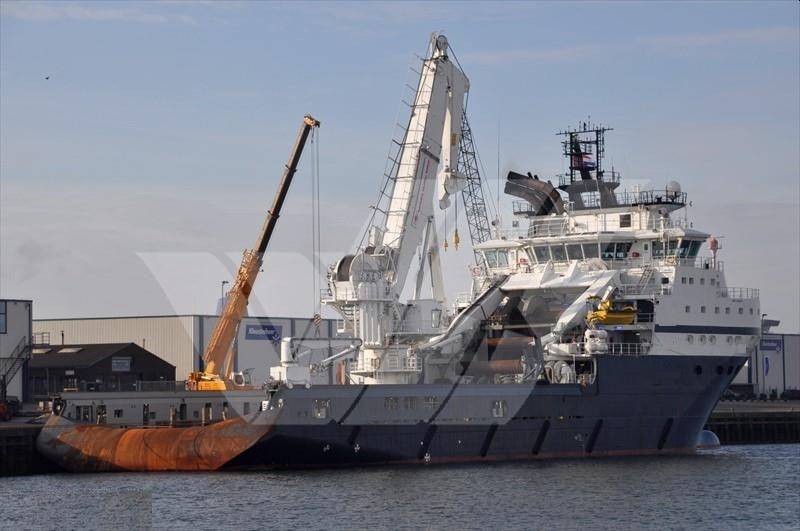

93m / DP 2 / 235ts BP AHTS Vessel / #1065507

VESSEL INFO

• Offer type Ship for charter

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Year of construction 2007

• Length 93.4m

• Width 22m



• Deadweight 5384 metric tons

• Capacity 90 ML



• PRICE Price on request


DESCRIPTION

GRS identification number: #1065507

LOA 93.4 m
Beam 22 m
Draft 7.91 m
Bollard Pull : 235 tons
Dynamic Positioning of class : DP 2
Free Deck area about 500m² with a deck strength of 10 metric tonnes per square meter
Capable of supplies of 1,898m³ Fuel Oils, 337m³ Methanol, 1,172m³ FW, 671m³ Liquid Mud and 671m³ Brine
1 Crane / Gear installed with a max lifting capacity of 90 tons
1 Crane / Gear installed with a max lifting capacity of 6 tons
1 Crane / Gear installed with a max lifting capacity of 4 tons
1 AF installed with a max lifting capacity of 200 tons
Built in year 2007
Design is : UT 787-LCD
Class : DNV
Flag : Norway
Gross Tonnage of 6,335 and Nett Tonnage of 1,900
Deadweight : 5,384 metric tonnes
Moon pool 7m x 7m installed
Ice classed 1C
Total 62 berths
Speed : 16.5 knots
Engines : 2 x Bergens / Rolls-Royce Marine AS B32:40V12P, 12,000 kw, 750 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 Caterpillar 1,800 kw + 1 Caterpillar 600 kw, Bowthruster + Sternthruster (1 Bow Tunnel thruster 1,200kw + 1 Bow Retract. dir. thruster 1,800kw + 1 Stern Tunnel thruster 1,200kw + 1 Stern Retract. dir. thruster 1,800kw)
