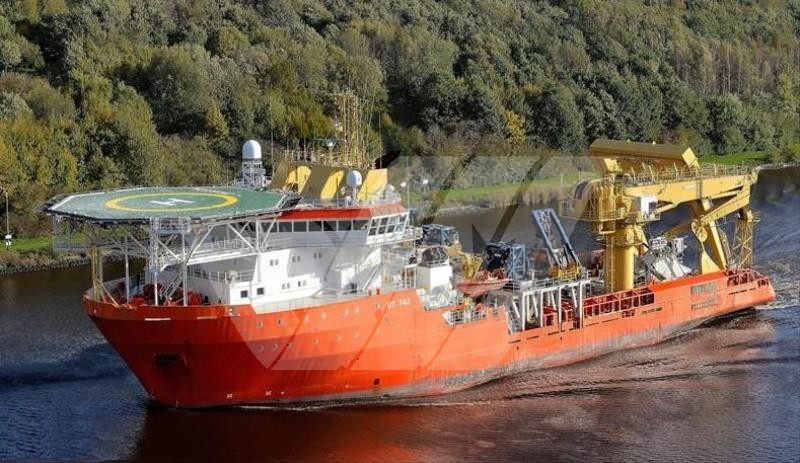

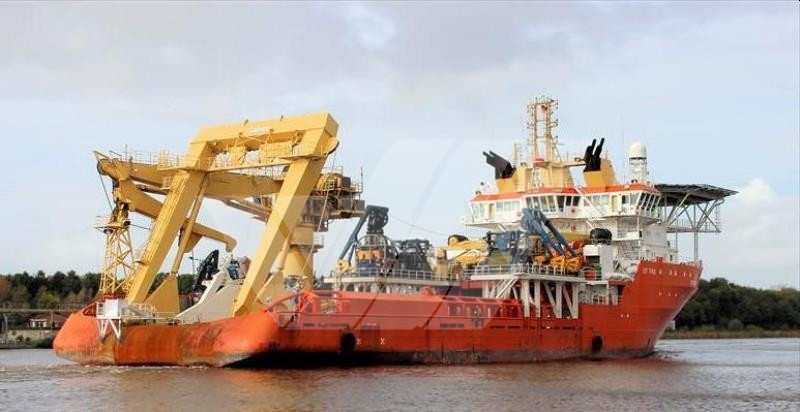

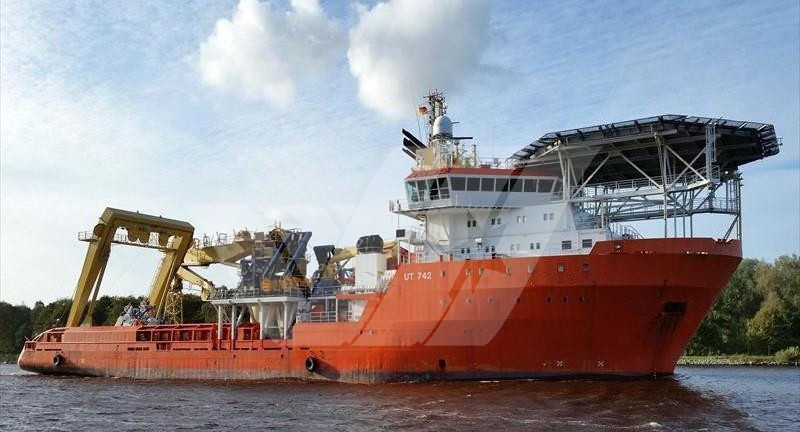

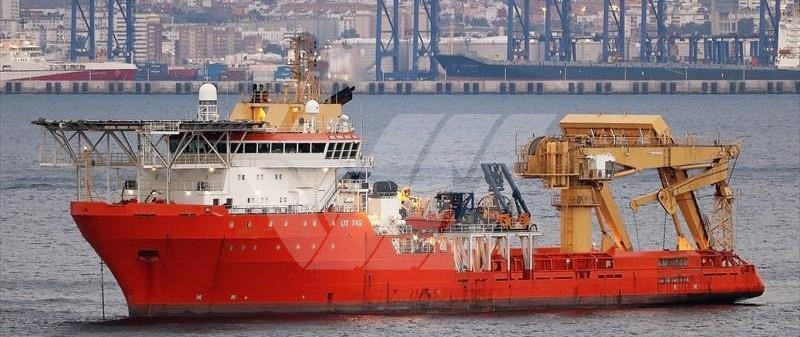

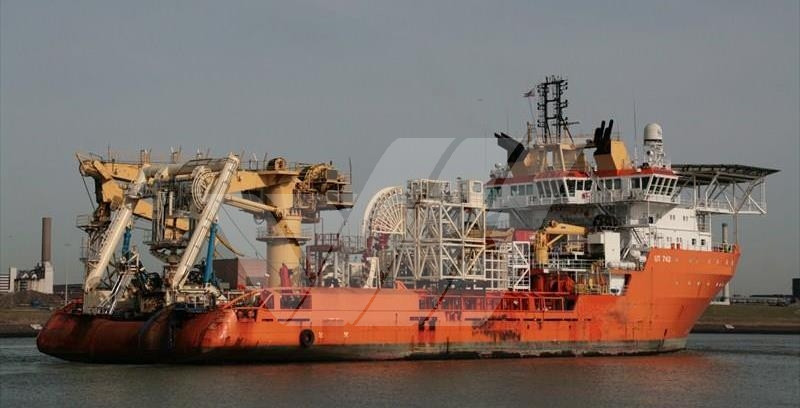

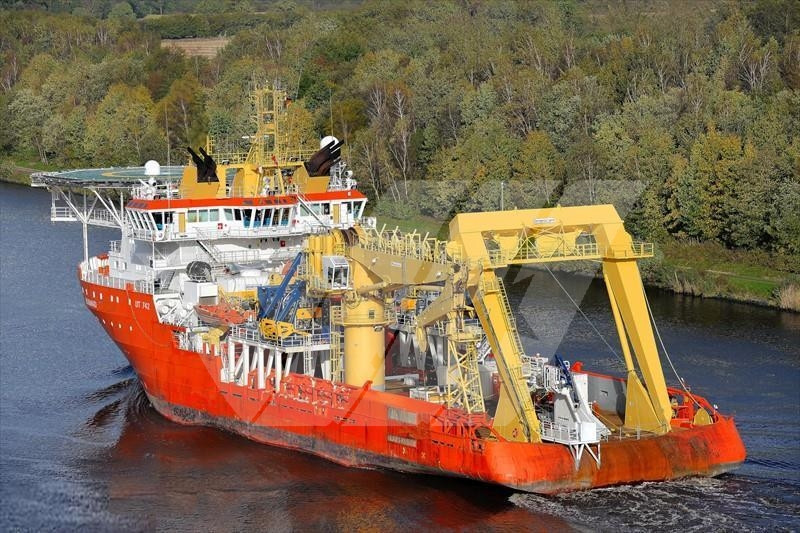

95m / DP 2 / 282ts BP AHTS Vessel / #1058321

VESSEL INFO

• Offer type Ship for charter

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Year of construction 1999

• Length 95m

• Width 24m



• Deadweight 5292 metric tons

• Capacity 150 ML



• PRICE Price on request


DESCRIPTION

GRS identification number: #1058321

LOA 95 m
Beam 24 m
Draft 8.23 m
Bollard Pull : 282 tons
Dynamic Positioning of class : DP 2
Free Deck area about 1,000m² with a deck strength of 10 metric tonnes per square meter
Capable of supplies of 2,100m³ Fuel Oils, 120m³ Methanol, 1,050m³ FW and 3,950m³ Brine
Fire Fighting System installed
Heli Deck installed
1 Crane / Gear installed with a max lifting capacity of 140 tons
2 Cranes / Gears installed with a max lifting capacity of 5 tons
2 Cranes / Gears installed with a max lifting capacity of 1.3 tons
1 AF installed with a max lifting capacity of 150 tons
Built in year 1999
Design is : UT 742
Class : DNV
Flag : Norway (NIS)
Gross Tonnage of 5,913 and Nett Tonnage of 1,774
Deadweight : 5,292 metric tonnes
Moon pool 10.5m x 8.4m installed
Ice classed 1C
Total passenger capacity 73 with 73 berths
Speed : 12 knots
Engines : 4 x Wartsila / Wartsila NSD Nederland BV 8L38, 18,480 kw, 600 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 4 Caterpillar 1,300 kw, Bowthruster + Sternthruster (1 Bow Retract. dir. thruster 2,000kw + 2 Bow Tunnel thruster 1,000kw + 2 Stern Tunnel thruster 1,470kw)
