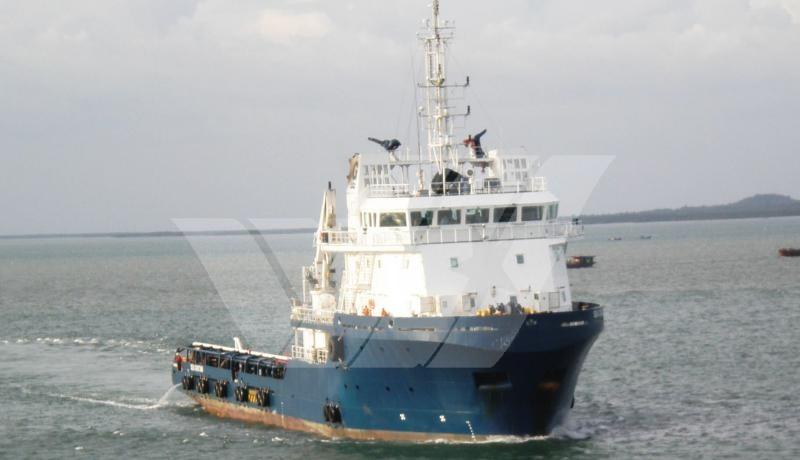

76m / DP 2 / 141ts BP AHTS Vessel / #1068234

VESSEL INFO

• Offer type Ship for charter

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Classification China Classification Society

• Year of construction 2009

• Length 76m

• Width 17m

• Depth 6.2m

• Deadweight 2728 metric tons

• Capacity 5 ML

• PRICE Price on request


DESCRIPTION

GRS identification number: #1068234

LOA 76 m
Beam 17 m
Draft 6.2 m
Bollard Pull : 141 tons
Dynamic Positioning of class : DP 2
Free Deck area about 515m² with a deck strength of 10 metric tonnes per square meter
Capable of supplies of 1,056m³ Fuel Oils, 485m³ FW, 650m³ Liquid Mud and 214m³ Brine
Fire Fighting System of type FiFi 1 installed
1 Crane / Gear installed with a max lifting capacity of 5 tons
Built in year 2009
Design is : MTD70140AX
Class : China Classification Society
Flag : China
Gross Tonnage of 2,943 and Nett Tonnage of 883
Deadweight : 2,728 metric tonnes
Total 42 berths
6 cabins with 1 berth
18 cabins with 2 berths
Speed : 14.5 knots
Engines : 4 x MaK / Caterpillar Motoren 6M25, 7,912 kw, 750 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 3 Caterpillar 601 kw, Bowthruster + Sternthruster (1 Bow Retract. dir. thruster 660kw + 1 Bow Tunnel thruster 600kw + 1 Stern Tunnel thruster 600kw)
