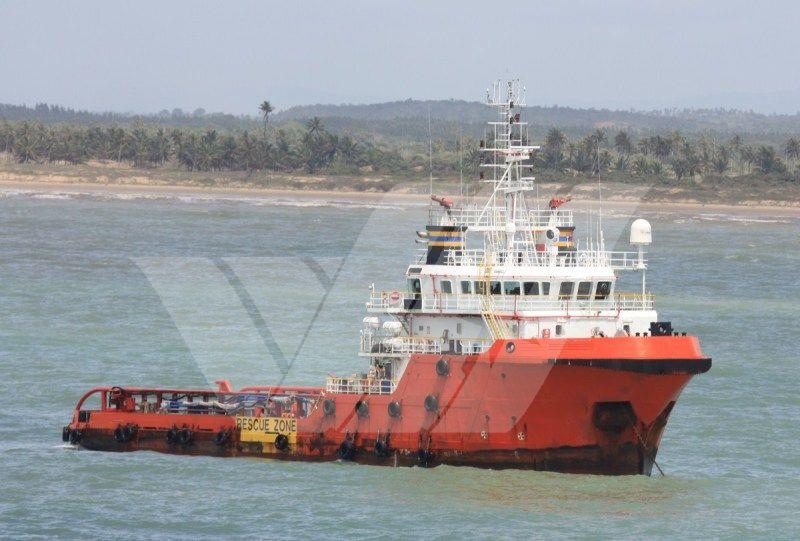

93m / DP 2 Offshore Support & Construction Vessel

VESSEL INFO

• Offer type Ship for charter

• Type Support Vessel

• Year of construction 2005

• Length 92.95m

• Width 19.69m



• Deadweight 3974 metric tons

• Capacity 150 ML



• PRICE Price on request


DESCRIPTION

GRS identification number: #1065057

LOA 92,95 m
Beam 19,69 m
Draft 6,3 m

Built in year 2005
Design is : MT 6010
Class : DNV
Flag : Brazil
Gross Tonnage of 4.724 and Nett Tonnage of 1.437

Dynamic Positioning of class : DP 2
Free Deck area about 816m² with a deck strength of 5 metric tonnes per square meter
Heli Deck installed
Moon pool 6m x 5,2m installed
1 Crane / Gear installed with a max lifting capacity of 150 tons
Deadweight : 3.974 metric tonnes
Capable of supplies of 1.140m³ Fuel Oils, 269m³ Methanol, 1.012m³ FW, 860m³ Liquid Mud and 495m³ Brine

Total passenger capacity 86 with 86 berths
18 cabins with 1 berth
30 cabins with 2 berths
2 cabins with 4 berths

Speed : 13,5 knots
Engines : 4 x Cummins / Cummins Engine Co Inc QSK60-M, 7.600 kw, 1.800 rpm, Propellers 1 Azimuth Elec. Dr. (Port Side) + 1 Azimuth Elec. Dr. (Starboard)
Auxiliaries Engines : 1 Cummins 485 kw, Bowthruster + No Sternthruster (2 Bow Tunnel thruster 880kw)
