40m Tuna/Purse Seiner - Design or EU based New Build to Order

VESSEL INFO

• Offer type Design

• Type Trawler

• Classification Croatian Register of Shipping

• Year of construction 2026

• Length 40m

• Width 8.5m

• Depth 4.3m

• Deadweight 100 metric tons

• Asking price Price on request


DESCRIPTION

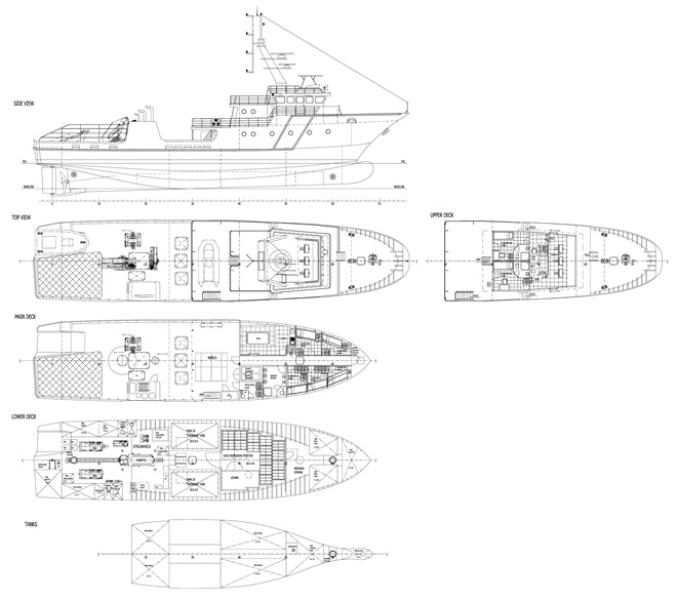

We are offering 40m tuna fishing vessel (tuna/purse) seiner with proven design with two basic options: full design package (already IACS Class approved - Croatian Register of Shipping) and/or new build (on “Built to Order” basis in well-established EU based shipbuilding facility). We can also offer “in-house” design customization based on the Customer special requirements.
Several vessels based on the similar design are already built, tested, delivered and successfully deployed with EU based fishing companies and they are available for Customer inspection.
Loa=40 m
B=8,5 m
Depth= 4,3 m
Draft= 3,5 m
Disp (full load)= 430 t
Max. Speed= 12 kts
TANKS
Fuel oil 68 t
Fresh water 21 t
Range= 2400 n.m.
Accommodation= 12
Hull, deck and superstructure are made of mild steel grade A welded by standard procedure
One engine propulsion 850-1000 kW options
Two gensets 300+100kVA
One HHP type anchor 427 kg
Cable 20 mm diameter
One hydraulic anchoring and mooring winch
One hydraulic fishing net winch with three drums
Two hydraulic operated cranes
HVAC
Two fresh water electric heaters
One portable bilge pump
One submersible bilge pump
Fire pump
Fixed fire fighting system in engine room
Fire detection system
Electric toilets
Two inflatable life rafts, 12 persons each
One inflatable boat with outboard engine 60+ HP
Fish tanks 2 x 30 m3
Dry hold 1 x 80 m3
