RoRo Terminal / Ramp Pontoon “FRANZ” – 35.0 x 26.4 m – Sweden

VESSEL INFO

• Offer type Ship for sale

• Type Cargo Barge

• Classification No classification

• Year of construction 1991

• Length 35.0m

• Width 26.4m

• Depth 1.25m

• Deadweight 889 GT metric tons

• Asking price Price on request


DESCRIPTION

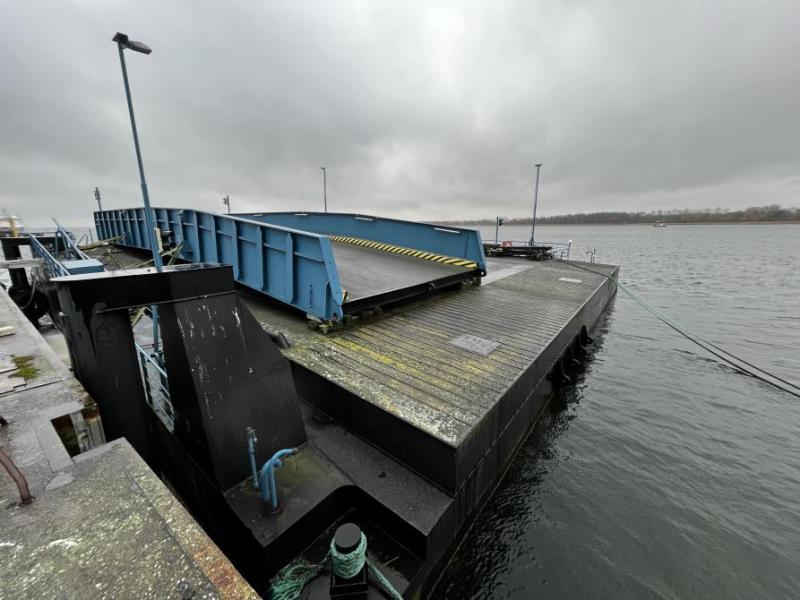

Pontoon “FRANZ” is offered for sale and is currently documented as located in Karlshamn, Sweden.
The pontoon was built in 1991 and refitted in 2002 and 2015. It has been used as a floating RoRo linkspan / terminal pontoon.
Principal particulars:
Length: 35.0 m
Beam: 26.4 m
Draft: 0.94–1.25 m
Lightweight: 563 t
Ballast: 36–56 t
Gross Tonnage: 889 GT

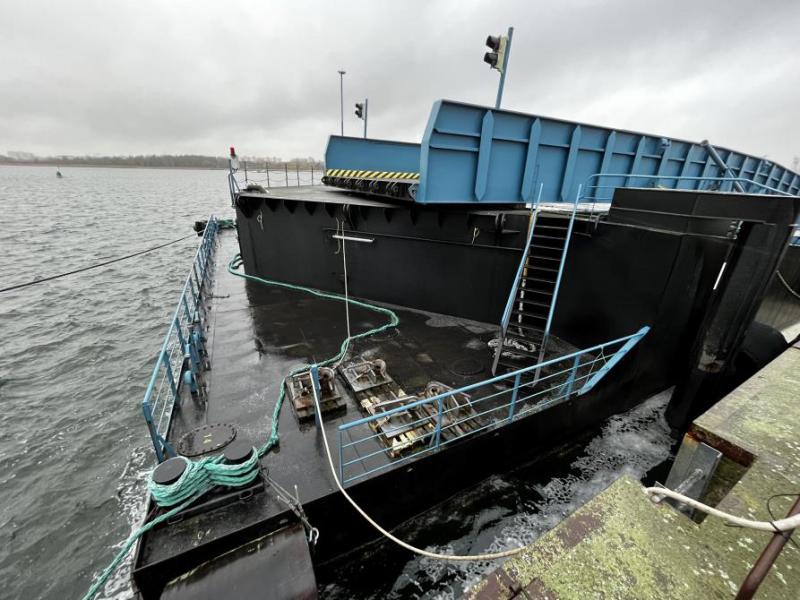

Loading & ramp data:
Maximum cargo weight: 156 t
Maximum axle load: 33 t
Fixed ramp angle: max. 6°
Ramp wedge angle: 3.6°
Technical documentation covers heavy terminal vehicle and trailer operations. Approx. four semi-trailers can be positioned on the pontoon simultaneously, subject to the applicable cargo and axle load limits.
The pontoon was previously classed by DNV GL as +100A5 I Terminal Pontoon, A-MC and is currently out of class.
General Arrangement Plan, tonnage calculation dated 15 July 2026 and supporting technical documentation are available on request.
