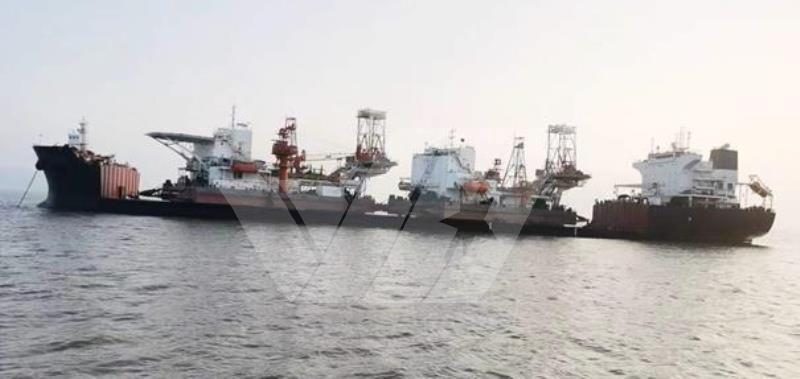

229m / Heavy Load Carrier, semi submersible / #1144583

VESSEL INFO

• Offer type Ship for sale

• Type Heavy Load Carrier

• Classification Bureau Veritas

• Year of construction 2012

• Length 229.2m

• Width 42m

• Depth 8.5m

• Deadweight 18778 metric tons

• Asking price Price on request


DESCRIPTION

GRS identification number: #1144583

Semi-Submersible Ship
Keel laid 25.06.2009
Delivery 23.02.2012
Rebuild 10.12.2025
Classification BV
Class Notation  100A1 Bulk Carrier, CSR, BC-A, GRAB[30],
ESP, *IVS, LI, LMC UMS, BWTS, EGCS (Open, Partial)
Year of Built 2012
Building Yard CHINA
Length o.a. 229.20 m
Length b.p. 222.00 m
Depth moulded 12.5 m
Moulded Beam / Max Beam 38 m / 42 m
Max draft 8.5 m
Freeboard 4.0 m
Masthead Height a. Keel50.8 m
Submerge depth 16.5 m
Gross Tonnage 33925
Net Tonnage 10177
Deadweight 18778.3 mt
Light Ship 15705 mt
Displacement 58623.6 mt
summer deadweight capacity is 93,005 tonnes
Loading Capacity (Main deck loading space)
156.0 m × 42.0 m = 6552.0 m²
Permit Deck Load 18000.00 t
Main Engines (Number, Output) 1 × 13,560 kW
Main Engine Type HYUNDAI MAN B&W 6S60MC-C7
Aux. Generator Diesels (Number, Output)3 × 750.00 kW
Aux. Generator Type HYUNDAI-HIMSEN 7H17/28
Propeller (Number, Type)1 Fixed Pitch, Right
Propeller Diameter 7,000 mm
Shaft Generator (Number, Output)NIL
Speed (Service / Maximum)11.5 kn / 15.0 kn
Fuel Oil Tank            3222.6 m³
Diesel Oil Tank            570 m³
Lub. Oil Tanks            174.11 m³
Fresh Water Tanks 532.73 m³
Water Ballast Tanks 63935.9 m³
Total Ballast Water 63935.9 Cbm
Total Ballast Tanks 61
Ballast (specified) 20965.2 Cbm / 32
Aux. Ballast          42970.7 Cbm / 29
LOA 229.2 m
Beam 42 m
Draft 8.5 m
Built in year 2012, rebuilt in 2025
Class : Bureau Veritas
Flag : Panama
Gross Tonnage of 33,925 and Nett Tonnage of 10,177
Deadweight : 18,778 metric tonnes
Free Deck area about 6,552m²
Speed : 11.5 knots
Engines : 1 x Hyundai Himsen B&W 6S60MC-C7, 13,560 kw, Propellers Fixed Pitch
Auxiliaries Engines : 3 Hyundai Himsen 750 kw
