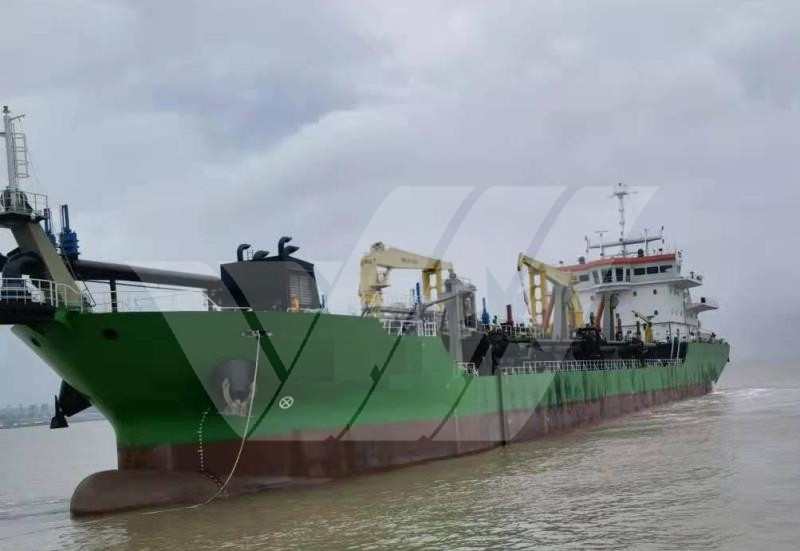

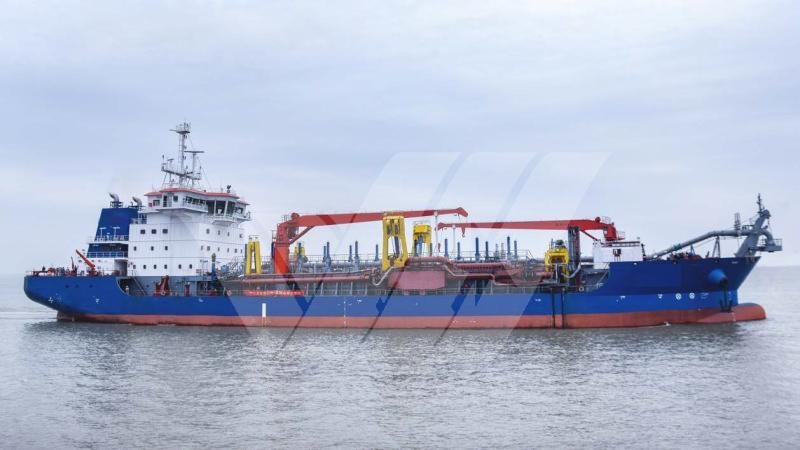

128m / Suction Hopper Dredger / #1123503

VESSEL INFO

• Offer type Ship for sale

• Type Dredger

• Year of construction 2021

• Length 128m

• Width 22m



• Deadweight 11770 metric tons

• Capacity 20 ML



• Asking price $ 37 000 000


DESCRIPTION

GRS identification number: #1123503

Built:2021 China
Inspection place: China
Classification:CCS *CSA Trailing Suction Hopper Dredger;R1;Dredging within
R2
Flag: China
Principal Dimensions and Characteristics
Length of all: 128.00 m
Beam: 22.00 m
Molded Depth: 9.00 m
Design Draft:7.80 m
Hopper capacity:9,000 m3
Loading time:60 min.
Deadweight:11,770 t
Design Speed: 11.50 kn
Dredging depth:35 m
Suction diameter:850 mm
Discharge diameter:850 mm
Discharge distance:1,500 m
Discharge by bow connection:120 min.
Propeller Engine
Maker:Guangzhou Diesel Power
Type:8G32
Power/speed:3552KW 600r/min
Q'ty:2 sets
Diesel generating set
Maker:CNPC Jichai Diesel Engine
Type:CCFJ550Z-Y
Engine Rate power:750 kw
Alternator power:580 KW
Rate speed:1,000 r/min
Q'ty:3 sets
Emergency generator
Maker:Weifang Diesel Engine
Engine rate power:138 kw
Alternator power:120 kw
Rate speed:1500r/min
Q'ty:1 set
Inboard pump
Maker:Guangzhou Diesel Power
Type:8320ZCd-8
Power:2206 KW
Rotation:525 rpm
Q'ty:2
Water flow:10,000 m3.hr
Head:23m
Rotation:365rpm
Q'ty:2
High pressure jet water pump
Maker:CNPC Jichai Engine
Type:AS8190ZLC-1
Power:1200 kw
Rotation:1200 rpm
Q'ty:2
Type:SDS400-620AI
Water flow:3,010m3/hr
Rate Speed:103r/min
Q'ty:2
Other Devices
Crane:20tx18m+ 8tx16m
LOA 128 m
Beam 22 m
Draft 7.8 m
Built in year 2021
Class : China Classification Society
Flag : China
Deadweight : 11,770 metric tonnes
1 Crane / Gear installed with a max lifting capacity of 20 tons
1 Crane / Gear installed with a max lifting capacity of 8 tons
Speed : 11.5 knots
Propulsion is Diesel Electric
