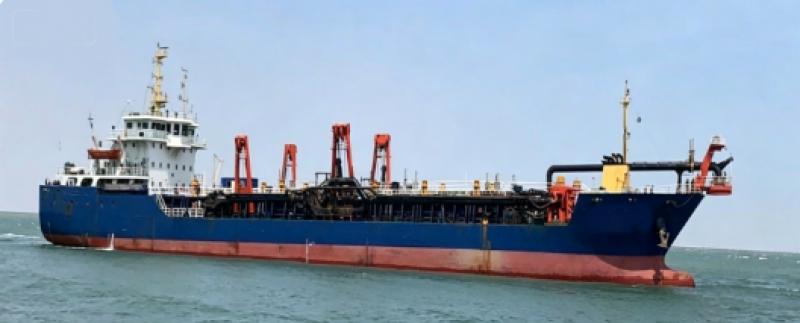

2009-built 7,000 m³ Self-Propelled Trailing Suction Hopper Dredger TSHD

VESSEL INFO

• Offer type Ship for sale

• Type Trailing Suction Hopper Dredger

• Classification China Classification Society

• Year of construction 2009

• Length 115.50m

• Width 20.05m

• Depth 9.7m

• Asking price $ 15 700 000


DESCRIPTION

2009-built 7,000 m³ Self-Propelled Trailing Suction Hopper Dredger TSHD

1. General Description:
This vessel is a self-propelled trailing suction hopper dredger with twin propellers, twin trailing suction pipes, single deck, steel full-welded construction, streamlined shape, and round bilge hull form. It is equipped with forward, midship, and aft three-point lifting/lowering trailing suction pipes, enabling dual-pipe dredging operations. Cargo discharge pipes are installed at the forward end of the hopper for bow jetting and bow spraying. The hopper is equipped with cone valves for mud discharge, which can be operated in groups or centrally. Each valve is operated by one hydraulic cylinder, with display and remote control from the wheelhouse. The draghead is of HIC linkage type, weighing 16 tons, with pointed teeth. The bow discharge pipe has a diameter of 750 mm, and the high-pressure flushing water system is designed for 10 kg or more. Loaded draft is 7.0 m, and speed is approximately 12 knots.

2. Principal Dimensions:

· Shipyard: Zhejiang
· Year Built: 2009
· Dimensions (Length overall / Breadth / Depth): 115.50 m / 20.05 m / 9.70 m
· Loaded Draft: 7.00 m
· Operating Draft (Dredging condition): 8.00 m
· Gross Tonnage / Net Tonnage: 6105 / 1751
· Complement: 35 persons
· Main Engine Power: 2 × 3100 kW
· Generators: 3 × 400 kW, 1 × 90 kW
· Speed: ~12 knots
· Class Society: ZC

3. Operational Performance:

· 7,000 m³ hopper type, self-discharging, with bow jetting and bow spraying, trailing suction hopper dredger
· Single deck, steel full-welded construction, wheelhouse located on top of the poop deckhouse
· Twin engines, twin propellers, twin rudders
· Maximum dredging depth (below light draft): 35 m
· Suction/discharge pipe diameter: 750 mm
· Each trailing suction pipe is equipped with three lifting devices: bend lifting device, midship lifting device, and draghead lifting device
· Open hopper, equipped with two rows totaling 14 pcs of Ø3000 mm cone valves, and two rows totaling 14 pcs of Ø650 mm cargo discharge valves
· Two overflow pipes with diameter 1800 mm and stroke 2.5 m
· Hopper loading time: ~30 min
· Mud discharge time via cone valves: 5 min
· Pumping entire hopper load ashore over a distance of approximately 1500 m
· Equipped with high-pressure flushing piping system in the hopper to loosen and dilute sediment during discharge
· Capable of loading dredged slurry into the hopper, and also discharging directly at low concentration when slurry concentration is very low
· Dredging control console in wheelhouse located on both sides at a lower position in the middle of the steering stand, designed for two-person operation with good visibility


The EX Chinese port price is usd15.7 million
