NEW 10,000 m³ Trailing Suction Hopper Dredger for sale

VESSEL INFO

• Offer type Ship for sale

• Type Trailing Suction Hopper Dredger

• Classification China Classification Society

• Year of construction 2026

• Length 126.7m

• Width 23m

• Depth 10m

• Asking price Price on request


DESCRIPTION

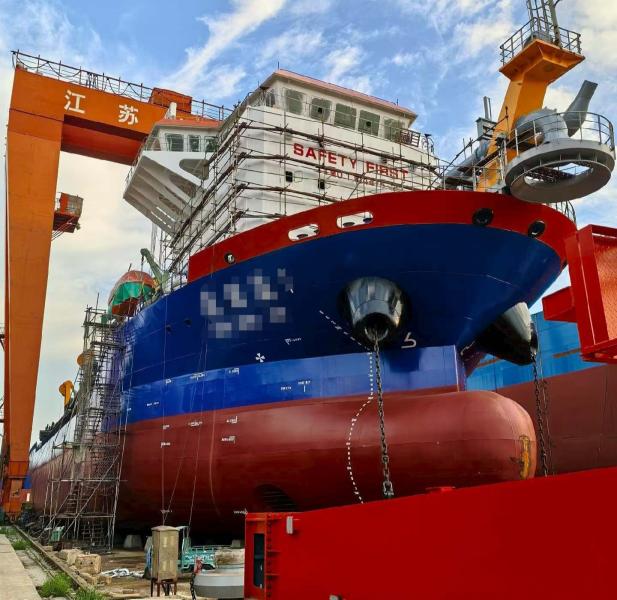

NEW 10,000 m³ Trailing Suction Hopper Dredger (TSHD)
General Description
This vessel is a modern 10,000 m³ Trailing Suction Hopper Dredger (TSHD) designed for capital dredging, maintenance dredging, land reclamation, beach nourishment, and offshore dredging operations.
The dredger combines high production efficiency, large hopper capacity, advanced dredging automation, and reliable navigation systems, making it suitable for large-scale coastal and port development projects.

Main Particulars
Item Specification
Vessel Type Trailing Suction Hopper Dredger
Classification CCS
Hopper Capacity 10,000 m³
Length Overall 126.7 m
Breadth 23.0 m
Molded Depth 10.0 m
Design Draft 7.65 m
Light Draft 4.23 m
Dredging Draft 8.10 m
Gross Tonnage 8,678 GT
Net Tonnage 2,603 NT
Displacement 18,501.84 t
Service Speed 12.6 knots
Maximum Dredging Depth 30 m

Main Propulsion System
Item Specification
Main Engines 2 × BN350ZLC
Power Output 4,778 kW each
Total Installed Power 9,556 kW
Speed 650 rpm
The propulsion system provides sufficient power for dredging operations, long-distance transit, and offshore working conditions.

Dredging Equipment
Trailing Suction System
Item Specification
Suction Pipe Diameter Ø800 mm
Draghead Dimensions 10.0 m × 3.1 m
Automatic Hydraulic Draghead Weight 13.6 t
Dredge Pumps
Item Specification
Dredging Diesel Engines 2 × 1,800 kW
Jet Water Pump Diesel Engines 2 × 1,500 kW
Submersible Dredge Pumps 2 × 1,000 kW
Jet Water Pumps
Item Specification
Capacity 10,000 m³/h
Head 23 m
Quantity 2
Submersible Dredge Pumps
Item Specification
Capacity 7,000 m³/h
Quantity 2
Discharge System
Item Specification
Relay Pumps 2
Floating Pipeline Diameter Ø700 mm
Shore Discharge Distance Approx. 2.5 km
