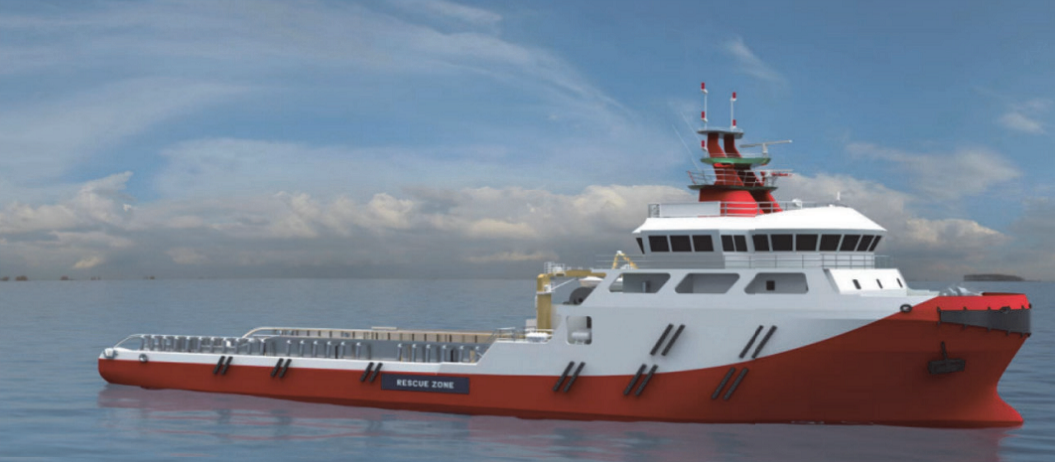

AHTS for sale

VESSEL INFO

• Offer type Ship for sale

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Classification China Classification Society

• Year of construction 2006

• Length 78.3m

• Width 17.2m

• Depth 8.3m



• Deadweight 3024 metric tons

• Capacity 3 ML



• Available from Create an account »

• Available to Create an account »

• Asking price $ 1 400


DESCRIPTION

LOA 78.3m
LPP 68.2m
Breadth mld 17.2m
Depth mld to main deck 8.3m
Summer draft 7 m + 1.02m Skeg/Nozzle
Deadweight 3024mt (d=7m)
Gross tonnage 3068
ACCOMODATION
Total number of bunks 28 Persons
Main engines 4 x 2700KW
Total output 16005 BHP
THRUSTERS
Bow thruster 1 x 1200BHP
Azimuth thruster 1 x 1200BHP
Stern thrusters 1 x 1200BHP
GENERATORS
Shaft generators capacity: 2 x 3000kVA, 440V
Aux generators capacity: 1 x 968KW
EM generator capacity: 1 x 410KW
CARGO DECK
Deck space 509,76m² (35,4m x 14,4m)
Deck space 900mt
Height of cargo rail 3m
CARGO CAPACITY SUMMARY
Fuel oil 1060m³ / 6667bbls
Ballast water
Base oil 508m³ / 3195bbls
Fresh water 741m³ / 4661bbls
Drill water 1231m³ / 7743bbls
Liquid Mud 538m³ / 3384bbls
Brine 952m³ / 5988bbls
Dry Bulk 225m³ / 7945cuft (4 tanks)
DECK CRANE
Page 4 of 7
Starboard crane SWL 3 Tonne - 1.9m to 16m, SWL 5 Tonne -
1.9m - 12m
Port crane SWL 3 Tonne - 2.1m to 15m
Aft crane N/A
Aft crane SWL 2.4 Tonne at 15.8m
Crane TBN N/A
Crane TBN N/A
TOW/WORK WINCH
Type
BHP 185 MT
Lenght of drum 4,930m of 76mm wire or 4,200m of 84mm
wire
Inner drum diameter
Diameter of flanges
Low gear: Drive hoist first layer First layer 400mt -18.0m/min
Low gear: Drive hoist top layer Last layer 175mt - 41.1m/min
Low gear: Lowering first layer
Low gear: Lowering top layer
Low gear: Dynamic braking first layer 550mt
Low gear: Dynamic braking top layer 550mt
High gear: Drive hoist first layer First layer 244mt -28.3m/min
High gear: Drive hoist top layer Last layer 107mt -64.4m/min
High gear: Lowering first layer
High gear: Lowering top layer
High gear: Dynamic braking first layer 550mt
High gear: Dynamic braking top layer 550mt
JOYSTICK
Type Rolls Royce POSCON
Connections points FWD, AFT, PORT and STBD Bridge
