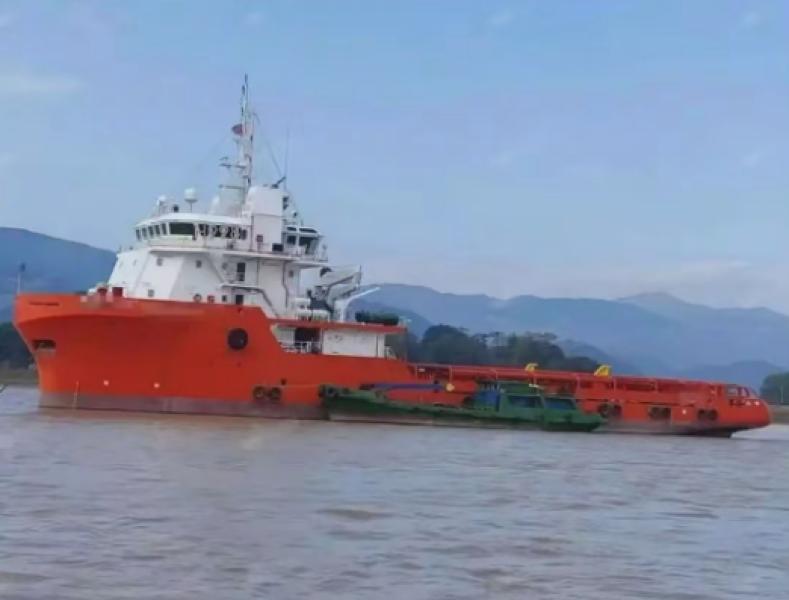

2012-built 8,400BHP AHTS with DP1

VESSEL INFO

• Offer type Ship for sale

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Classification China Classification Society

• Year of construction 2012

• Length 68m

• Width 16.2m

• Depth 7.2m



• Capacity 3 ML



• Asking price $ 8 700 000


DESCRIPTION

2012-built 8,400BHP AHTS
Year of Build: 2012
Place of Build: Fujian, China
Classification Society: CCS
Length Overall: 68 m
Moulded Breadth: 16.2 m
Moulded Depth: 7.2 m
Full Load Draught: 5.8 m
Navigation Area: Coastal A1+A2
Maximum speed 12 Knots; Economic speed: 10 Knots.
The completion date was 2012. Tow/Drop anchor.
Flag state: China.
Main cable towing machine model :YTB110L-B, Rated speed :5M/MIN.
Drag cable roller L1463mmXD 900mm.
Classification symbol: CSA Tug/Offshor Ship/Stay By.
ship/Rescue ship/Fire throwing anchor cable L 500 mXD 56 mm
Fighting Ship1;
Water stern drum L 7132mmXD 358mm;
Spraying; Ice Class B/ Anchor machine YMZJ40 Hydraulic anchor Winlass.
DP-1; BRC winch 2X100 KN at≥10 m/min.
Shark pliers 1X200t Traction pin: 200TP/PF.
Main dimensions: Safety/Fire protection/anti-pollution equipment:
Life raft 4X 15 Persons; 4X 25 Persons
Rescue boat 1X 6 Persons

Gross tonnage: 2,360.
Net tonnage: 708
External Fire Protection FiFi1
Water:2X 1500 cu.m/hr
Load capacity: 1581.5. Length of Throw 140 m
Deck cargo capacity anti-pollution equipment oil-water separator :CYSC107-1.0
The deck area is 452 Domestic sewage treatment device :WCBJ159-30sq.m.
Maritime/communication equipment (not limited to the following equipment)
Effective loading area
401 sq.m
The deck cargo capacity of the Radar is 1xFAR-2117 and 1xFAR-2137
12001
Deck strength: 5t/sq.n. Electric compass Anschutz gyro compass
Cargo hold capacity standard 22.
Bulk cargo 200cu.m(50+50+50+50 tanks). Magnetic compass CGT-165
Drinking water 480.5cu.m. Combined radio 1XFS-2570
Drilling/ballast water 821.79,cu.m. Aviation warning receiver 1XNX-700 B
Fuel 573.2 cu.m. Satellite C Station 1 x Felcom-15
Mud 199 cu.m. Global locator 1XGP-150
Base oil single side band FS-
Salt water 157.8cu.m. Weather FAX machine FAX-408
Remarks; Wei called Haiweitong at 0580-8305813
Goods conveying rate
Bulk cargo: 60t/hr. DP capacity: DP-1.
Drinking water: 100cu.m/hr at 0.8MPa. Passenger capacity: 12 people.
Drilling ballast water: 100cu.m/hr at 0.8MPa. Ice Class:B.
Fuel oil: 120cu.m/hr at 0.8MPa.
Mud/base oil/brine 75 Cu.m /hrat 1.8MPa75 Cu.m /hrat 1.8 mpa
Machinery and equipment
The main unit is 2XGN8320ZC7B-1/6B-1
The main power is 2X4200 HP, and the Total is 8400 Hp
Thruster 2X CPP
Main generator of the generator set :2X400kw
Axial generator :2X1000 kw
Emergency generator :1X90KW
The bow push is 2X360kw=720Kw
Push 1X360kw from the stern side
Bollard pull : 96 tons
Deck crane hydraulic lifting crane, 3T
Ice Class B.
The EX Chinese port price is usd8.7 million
