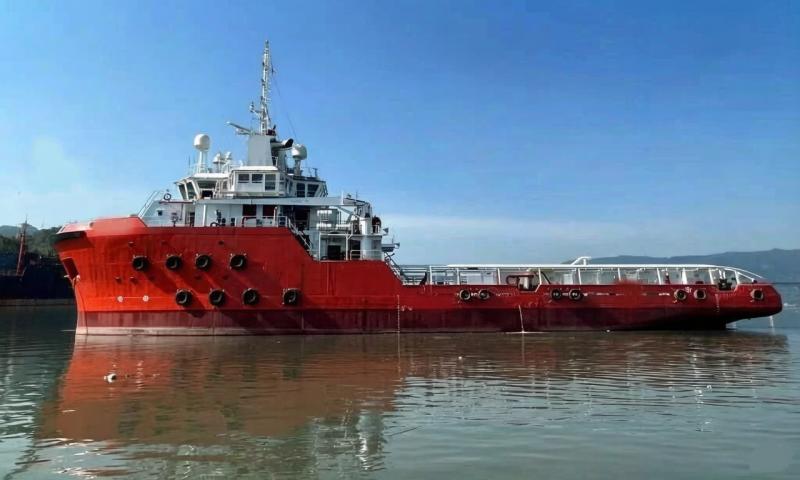

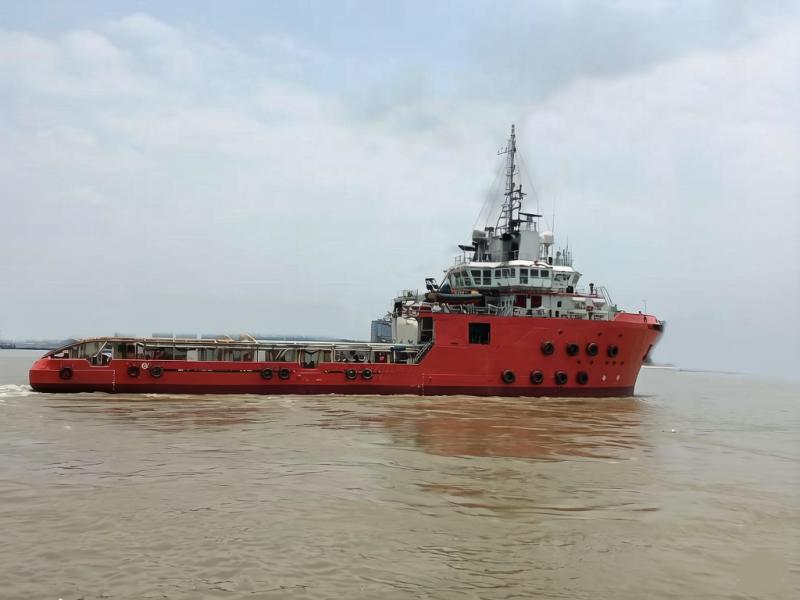

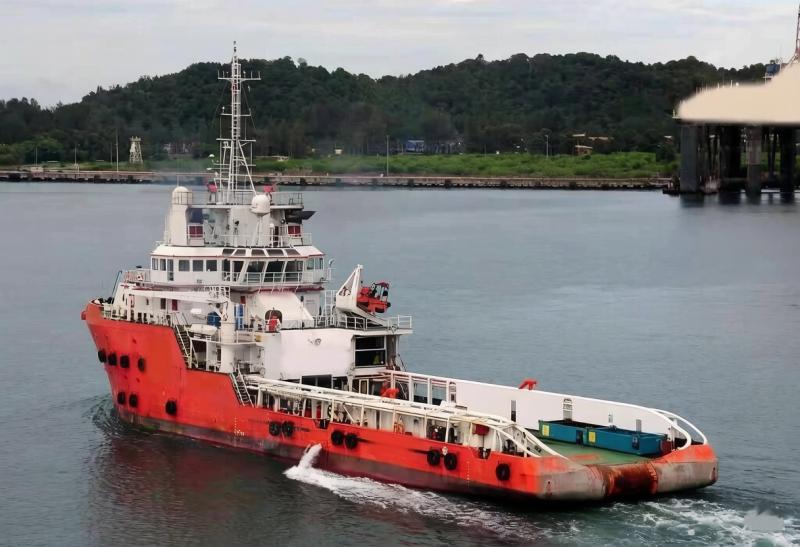

2009-built 10,800 HP Anchor Handling Tug Supply (AHTS) Vessel with DP2

VESSEL INFO

• Offer type Ship for sale

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Classification China Classification Society

• Year of construction 2009

• Length 67.22m

• Width 16.2m

• Depth 7.2m

• Asking price $ 12 500 000


DESCRIPTION

2009-built 10,800 HP Anchor Handling Tug Supply (AHTS) Vessel with DP2

1. Vessel Type & Principal Dimensions

· Type/Usage: Firefighting / Towing / Supply / Standby / Rescue
· Year Built: 2009
· LOA / Beam / Depth: 67.22m / 16.20m / 7.20m
· Laden Draft: 6.10m
· Deadweight: 2,300 tons
· Navigation Area: Offshore / Coastal
· Gross Tonnage / Net Tonnage: 2,299 / 688

2. Deck & Tank Capacities

· Deck Area: 420 m²
· Cargo Deck Dimensions: 35m × 12m
· Deck Cargo Capacity: 800 tons
· Deck Loading: 5 tons/m²
· Fuel Oil: 1,194 m³
· Fresh Water: 239 m³
· Ballast Water: 437 m³
· Mud Tanks: 398 m³
· Seawater Tanks: 398 m³
· Refrigerated / Freezer Hold: 8 m³

3. Deck Machinery & Equipment

· Deck Crane: 2 tons @ 15m
· Capstans: 2 units, 10 tons (14.6 m/min)
· Towing Winches: 2 units, 11 tons (18.9 m/min)
· Rescue Boat: 1 unit, 10-person Seabear 23MKII
· Davit: MacGregor 3.2 tons
· Windlass: 12 tons (14.5 m/min)

4. Propulsion & Performance

· Main Engine: 2 × Wärtsilä W8L32 B3, 4,000 kW each
· Propeller: Controllable-pitch propeller (CPP)
· Total Power: 10,880 HP
· Bow Thruster: 2 × 8-ton thrust, controllable-pitch electric drive
· Stern Thruster: 1 × 8-ton thrust, controllable-pitch electric drive
· Max Speed: 13.5 knots (avg daily fuel consumption 30 tons)
· Economic Speed: approx. 12 knots (avg daily fuel consumption 20 tons)
· Bollard Pull: 142 tons
· Shaft Generators: 2 × 1,520 kW
· Auxiliary Generators: 2 × 590 kW
· Emergency Generator: 1 × 84 kW

5. Special Features & Accommodation

· External Firefighting Capacity: 2 × 1,200 m³/hr
· Dynamic Positioning System: DP2 (2 sets of GPS + CyScan)
· Accommodation: Single cabins, double cabins, quad cabins, and mess room

The EX Chinese port price is usd12.5 million
