Jack-up with 1000t + 350t crane

VESSEL INFO

• Offer type Ship for sale

• Type Jack-up

• Classification China Classification Society

• Year of construction 2019

• Length 93.0m

• Width 41.0m

• Depth 4.8m



• Capacity 1000 ML



• Asking price $ 40 000 000


DESCRIPTION

For sale Jack-Up Rig, classified by CCS as a Self-Elevating Offshore Support Unit. Built in 2019/09 in Jiangsu, China.
Size of the platform L93 x B41 x D7m with a draft of 4.8m and a working depth ranging from 20m to 45m.
Rig fitted with 4 Spud legs (Ø3350mm x 85m) in spud cans of L9,0 x B8,0 x H2,5m with a platform lift speed of 6 m/h

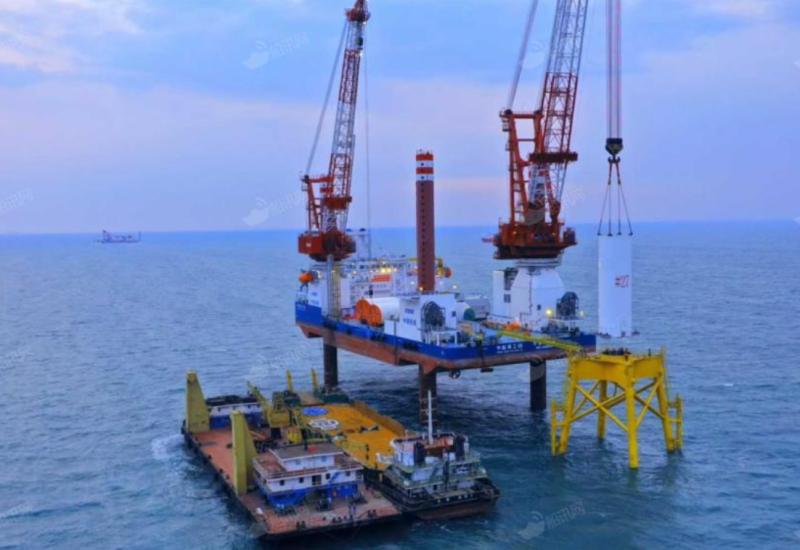

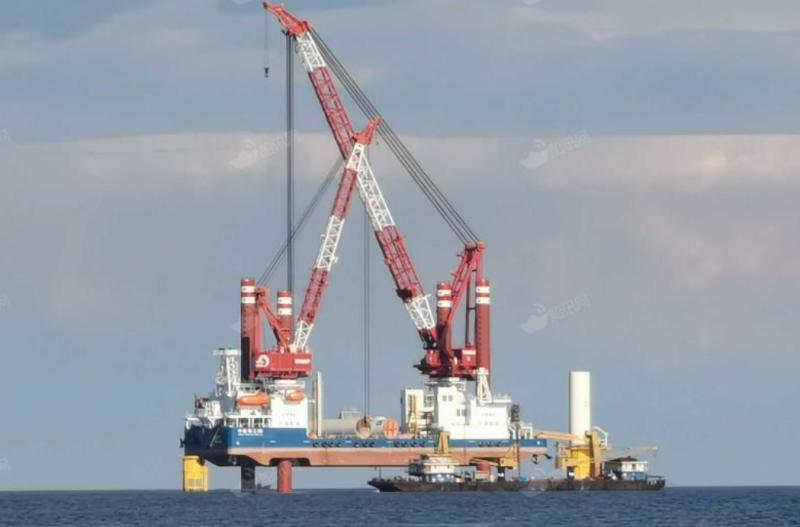

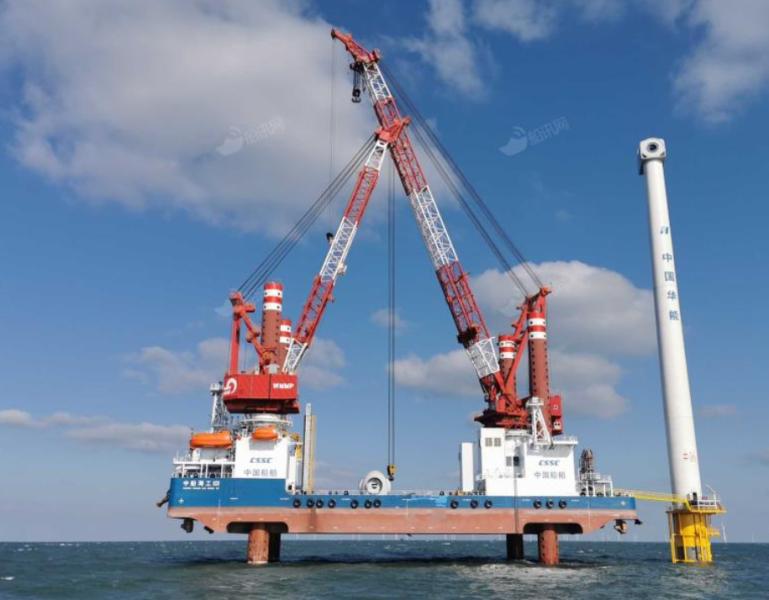

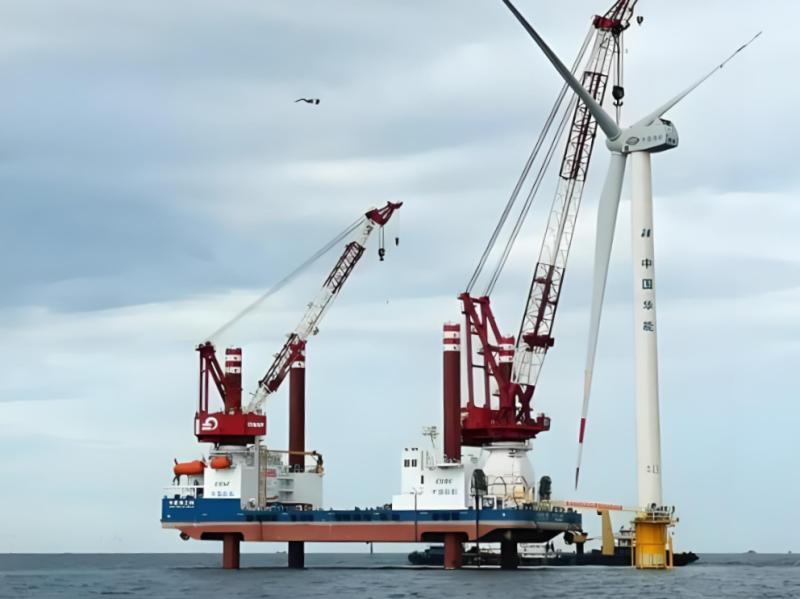

Rig is fitted with 2 x crane, 1 main crane - 1000t at 25m (115m above deck) and 1 auxiliary crane – 350t at 24 m (75m above deck)
Rig equipped with 4 single drum winches and 4 anchors of 10.000kg/each and 1 anchor of 765kg.
Onboard 4 x generator of 1700kW/each, 1 x harbour generator of 500kW and 1 x emergency generator of 350kW are fitted.
Rig has an oil tank capacity of 400m³ and a freshwater capacity of 500m³.
Complement for 60 persons (can be increase to 120 persons) with 2 x life rafts (40p/each) and necessary lifesaving equipment.
