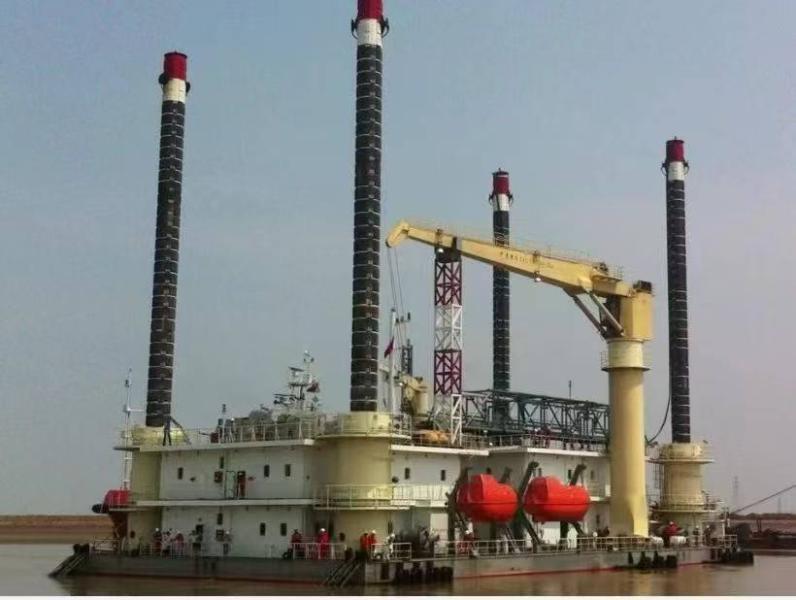

54 persons Self-Elevating (Jack-Up) Accommodation Platform
· Classification society: CCS (non-IACS)
· Accommodation capacity: 54 persons
· Endurance: 10 days
· Length overall: 48m
· Breadth (moulded): 26m
· Depth (moulded): 4.0m
· Light draft: 2.68m
· Loaded draft: 2.95m
· Living quarters: Two accommodation blocks in total – 34 persons in the bow section, 20 persons in the aft section
· Leg diameter: 1.524m
· Leg height: 40.39m
· Leg weight: 145.6t (including spud can)
· Lifting equipment:
· 20T × 1, 360° slewing crane, maximum radius 25m
· 3T × 1, 360° slewing crane, maximum radius 12m
The EX Chinese port price is usd7.3 millon
Chinese Port
