Ro-Pax Ferry– 122M CATAMARAN 3 Sister -BLT 1999

VESSEL INFO

• Offer type Ship for sale

• Type Ro-Ro/Passenger Ship

• Classification DNV GL

• Year of construction 1999

• Length 122m

• Width 25.8m

• Depth 3.76m



• Deadweight 522 metric tons



• Asking price $ 15


DESCRIPTION

(1)VESSEL NAME : PACAIFICAT DISCOVERY
(2)VESSEL NAME : PACIFICAT DISCOVERY
(3)VESSEL NAME : PACIFICAT VOYAGER
STATUS : LAID UP / INACTIVE
LOCATION : ABU QIR, EGYPT

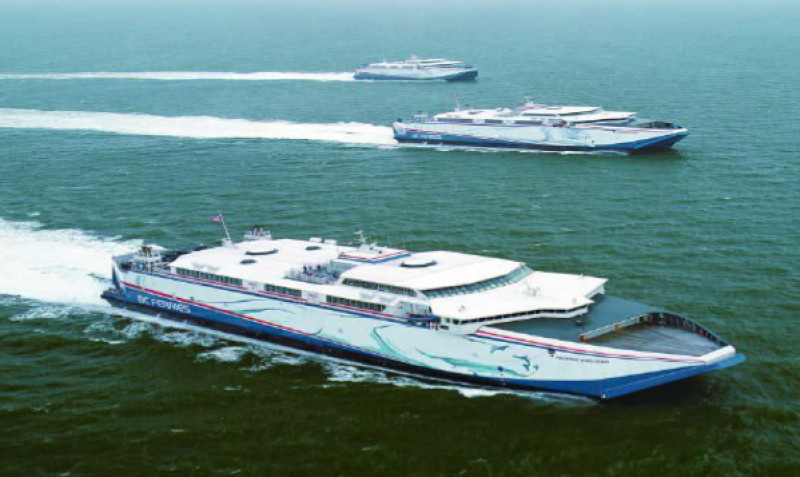

TYPE : HIGH SPEED CATAMARAN FERRY
LIGHT WEIGHT (LDT) IN METRIC OR LONG TON : 1363 TONNES
COUNTRY & YEAR BUILT : CANADA 1999
LENGTH OVERALL X LBP X BREADTH X DEPTH : 122.7 M * 25.8 M * 3.76 M
SERVICE SPEED: 37 KNOTS IN SEA STATE 2.5M (WAVE HEIGHT)
DRAFT OF THE VESSEL (FWD/AFT) : 3.76 M / 4.7 M
GROSS TONNAGE 9022 TONNES
NET TONNAGE 5130 TONNES
DISPLACEMENT TONNAGE 1885 TONNES
DEAD WEIGHT TONNAGE (DWT) 522 TONNES
MAIN ENGINE (MAKE, MODEL, BHP, PRESENT WORKING CONDITION) :

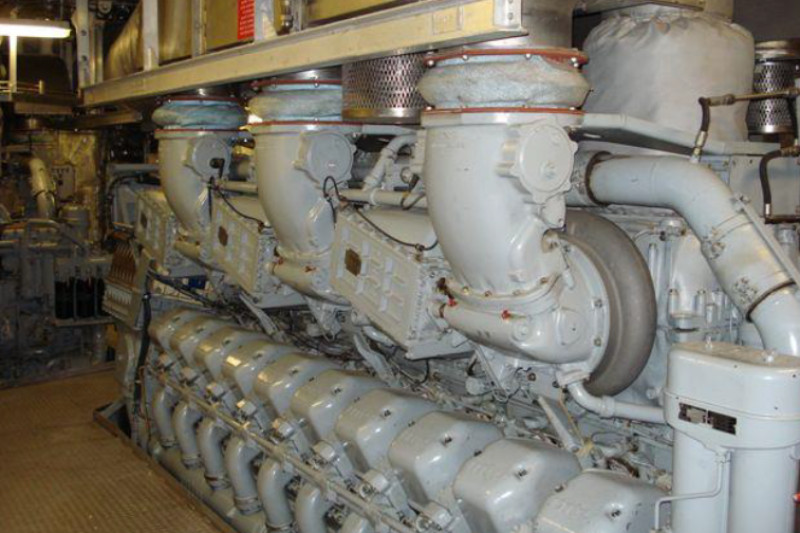

4*MTU 20V 1163 ENGINES 6500 KW
GENERATOR(S) (NUMBER, MAKE, MODEL, KW/KVA, VOLTS, HZ, AC/DC) :
4*CAT 3306 , 190 KW 600 V 60 HZ
EMERGENCY GENERATORS : NOT AVAILABLE
BOWTHRUSTER : FITTED AT THE FORWARD END OF THE STARBOARD SIDE (270 KW)
WATER JET (4*KAMEWA)
LOCATION OF BALLAST TANKS :
NO DEDICATED BALLAST TANKS. TRIM TANK LOCATED AFT FOR TRIMMING PURPOSES
BALLAST TANKS COATED : NOT AVAILABLE
PERMANENT BALLAST (MATERIAL, WEIGHT, LOCATION) NOT AVAILABLE
UNDER OWN POWER OR UNDERTOW : UNDERTOW
DELIVERY DATES 9/7/2014
LAST PORT OF DISCHARGE EDKO PORT
LAST 5 CARGOES CARRIED BY THE VESSEL NO PREVIOUS CARGO CARRIED SINCE 2014
ANY REMOVALS NOT AVAILABLE
ANY EXCLUSIONS DELIVERY WILL BE AS-IS IN THE CURRENT CONDITION
ANY CONVERSIONS TO THE VESSEL ? (IF YES, PLEASE ANSWER THE FOLLOWING)
WELDED OR RIVETED CONSTRUCTION? WELDED CONSTRUCTION USING ALUMINUM MATERIAL 5083
VESSEL IS SINGLE OR DOUBLE SKINNED (DOES VESSEL HAVE
ANY SIDE/WING BALLAST TANKS)?
SINGLE SKINNED VESSEL
THE SHIP IS DOCKED ON THE PIER AT ABU QIR, EGYPT FROM MARCH
2022 TO DECEMBER 2023
BUNKERS ROB UPON DELIVERY VESSEL TO BE DELIVERED WITH NO FUEL ONBOARD
OTHER SPECIAL ITEMS (ALUMINUM / STAINLESS STEEL ONBOARD THE VESSEL)
ALUMINUM , STAINLES STEEL, COPPER, WOOD
BEST BEACHING DRAFT OF THE VESSEL 3.76 M
IS THE VESSEL PURELY A CONTAINER VESSEL OR MPP : NO, IT'S A CAR/PASSENGER FERRY.
DOES VESSEL HAVE ANY REEFER SPACES : YES
DOES VESSEL HAVE ANY REEFER PLUGS TO REFRIGERATE
CONTAINERS : NOT AVAILABLE
FLAG / PORT OF REGISTRY : CANADA
HOLDS / HATCHES : NO HOLDS/HATCHES
DERRICKS / CRANE CRANE
PRESENT CLASS OF THE VESSEL : WAS DNV SUPERVISION
FOR THE FERRIES INDICATIVE SALE PRICE PER SHIP USD 16-18 MILLION PER SHIP
