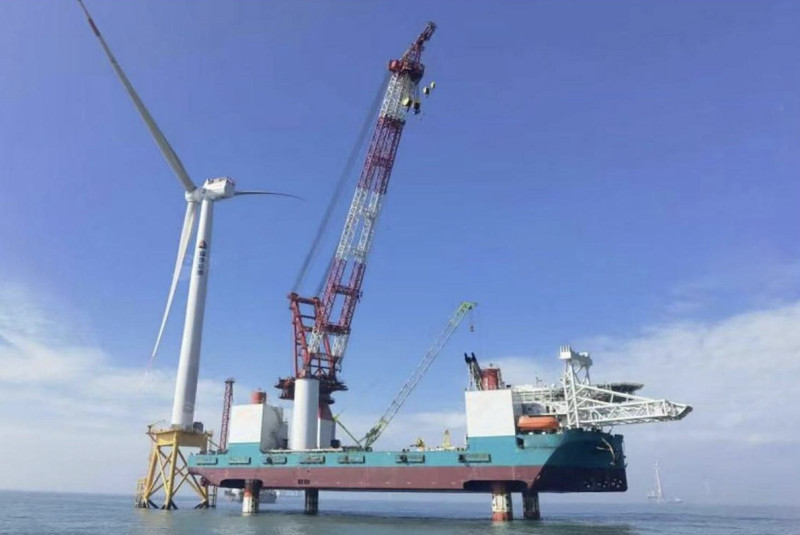

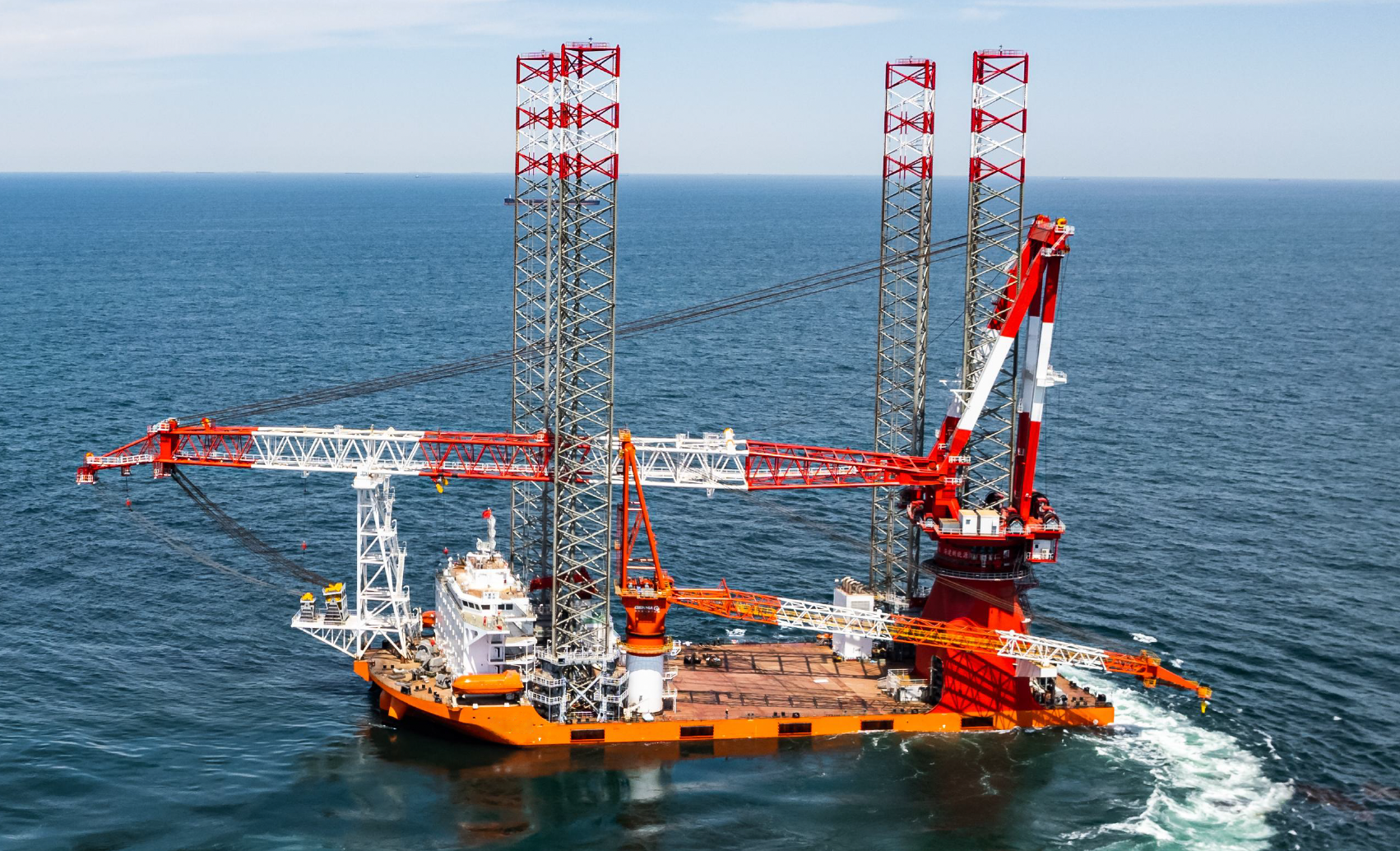

[For Sale] 1200-ton Self-elevating Offshore Wind Turbine Installation Platform

VESSEL INFO

• Offer type Ship for sale

• Type Offshore Wind Installation Vessel

• Year of construction 2021

• Length 42m

• Width 8.5m



• IMO 110



• Asking price Price on request


DESCRIPTION

[For Sale] 1200-ton Self-elevating Offshore Wind Turbine Installation Platform
Main Parameters:
Model Length: 110.4m
Modeled Width: 42m
Modeled Depth: 8.5m
Designed Draft: 5.3m
Variable Load: 4,300 tons
Deck Area: 2,700 square meters
Deck Load: 12t/square meter
Maximum Operating Water Depth: 50m
Pile Leg Length: 91.6m
Pile Leg Diameter: 4.2m
Sustainability: 20 days
Designed Service Life: 20 years

Lifting System:
Lifting Units: 4 Sets
Type: Continuous Hydraulic Pin Type
Rated Lifting Capacity: 4,800 tons/pile
Pile Leg Lifting Speed: 30m/h
Maximum Preload: 7,200 tons

1,200-ton Pile-Encircling Offshore Main Crane
Lifting Capacity: 1,200-ton Main Hooks with a 24m Span
2,300-ton Auxiliary Hooks with a 26m Span
60-ton small hook with a span of 30m
Maximum lifting height: 125m main hook on deck
135m auxiliary hook on deck
Floating full-slewing operation: 600-ton with a span of 30m
400-ton Zoomlion crawler crane x 1
Lifting capacity: 150-ton at a 6m main hook
10-ton at an 8m auxiliary hook
Maximum lifting height: 48-meter main hook on deck
50-meter auxiliary hook on deck
15-ton crane x 1
Lifting capacity: 15-ton at a 5m to 25m main hook

Generators
Main generators: 5 x 1600kW
690V/50Hz/3Ph
Emergency Generator: 1 x 400kW
Mooring Generator: 1 x 800kW
Power System: 400V/50Hz/3Ph
Accommodation
Single Rooms: 6 x 1 = 6 people
Double Rooms: 11 x 2 = 22 people
Quadruple Rooms: 13 x 4 = 52 people
Total Capacity: 80 people

Tanks
Fresh Water Tank: 331.9 cubic meters
Fuel Tank: 504.9 cubic meters
Ballast Tank: 12,933.3 cubic meters

Positioning: Dynamic Positioning (DP) or Anchored Positioning

Propulsion System (Fully Electric)
Stern Thruster: 3 x 1800kW
Bow Thruster: 3 x 900kW
