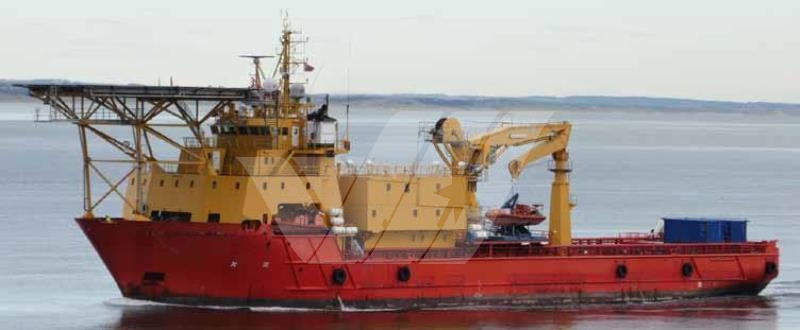

54m Offshore Support & Construction Vessel

VESSEL INFO

• Offer type Ship for sale

• Type Support Vessel

• Year of construction 2004

• Length 53.8m

• Width 13.8m



• Deadweight 1125 metric tons

• Capacity 10 ML



• Asking price $ 3 600 000


DESCRIPTION

GRS identification number: #1064175
54m PSV well maintained and in class.

Storage:
Freezer : 30,18 m³below deck
3x 20ft Reefer container on deck
Dry Storage : 56,45 m³ below deck

Deck Equipment:
Anchor Windlass : 1x Hydraulic 5 Ton @ 15 m/min
Brake holding 30.05 Ton
Tugger Winch : 1x Hydraulic 10 Ton
Capstan : 2x Hydraulic 5 Ton

Lifting Equipment:
Deck Crane : 1x TTS, GPF 320-10-15
10.0 Ton SWL @ 15 mtr
MOB Crane : 1x Sekwang M.M., 1.65 Ton SWL
A-Frame : 1x Davit PLR-12004 12 tons



General details as follows:
LOA 53,8 m
Beam 13,8 m
Draft 3,81 m

Built in year 2004
Class : Registro Italiano Navale
Flag : Panama
Gross Tonnage of 1.058 and Nett Tonnage of 317

1 Crane / Gear installed with a max lifting capacity of 10 tons
1 Crane / Gear installed with a max lifting capacity of 1,65 tons
Deadweight : 1.125 metric tonnes
Bollard Pull : 35 tons
Capable of supplies of 850m³ Fuel Oils and 158m³ FW

Total 42 berths
4 cabins with 1 berth
3 cabins with 2 berths
8 cabins with 4 berths

Speed : 12,5 knots
Engines : 2 x Caterpillar / Caterpillar Inc 3512B, 2.350 kw, 1.800 rpm, Propellers 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)
Auxiliaries Engines : 2 Cummins 260 kw, Bowthruster + No Sternthruster (1 Bow Thwart. FP thruster)
