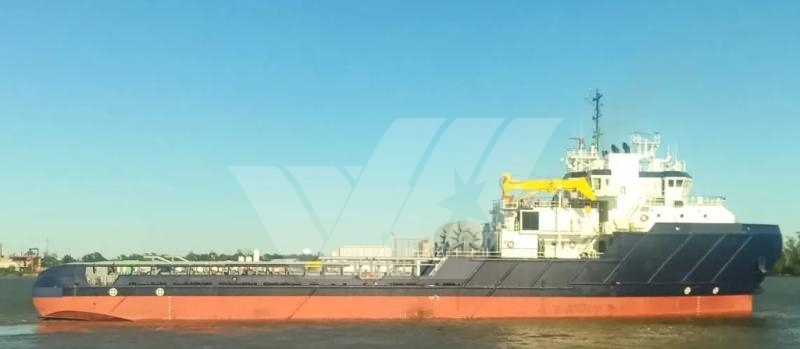

75m / DP 2 / 150ts BP AHTS Vessel

VESSEL INFO

• Offer type Ship for charter

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Year of construction 1997

• Length 74.9m

• Width 18m



• Deadweight 2918 metric tons

• Capacity 10 ML



• PRICE Price on request


DESCRIPTION

GRS identification number: #1056958

Versatile DP2 AHTS / Rescue / Oil Rec. / FiFi Class II - Multipurpose Field Suppport Vessel now available for sale.
POWER
Total output: 2x Caterpillar 3616 TA - 4stroke single action. Total 14.742 BHP
THRUSTERS
2x Ulstein type 3000 AGC
2x Ulstein 4.blades c.p. in nozzle
1x Ulstein VROS 180 Azimuth, driven by Caterpillar 3612 BTA Output 1096 BKW - 1500BHP
Tunnel thruster: 2 x Ulstein el.driven each. 883 kW - 1200 rpm (One bow and one stern )
DECK
Length : 36.00 m
Breadth : 15.00 m
Total : 570.00 m²
Max deck load : 1300 tons
Deck strength : 10/5 tons/m²
TANK CAPACITY
Fuel oil : 1116 m³
Drill water : 904 m³
Potable water : 715 m³
Brine : 302 m³
Liquid mud : 416 m³
Methanol : 121 m³
Dry Bulk : 284 m³ (10000 cbf)
Oil Rec. : 1540 m³
Base oil : 240 m³
Dispersant : 63 m³
BOLLARD PULL
Bollard pull : 157,1 tonnes.
DYNAMIC POSITIONING
SDP system type Simrad SDP 21
ACCOMMODATION
2 x 1 men cabins W/dayroom and bedroom
7 x 1 men cabins
5x 2 men cabins
4 x 4 men cabins
Total 33 bunks , all cabins are equipped with WC and
Shower
The vessel has safety equipment acc. to Solas for 33
persons.
RESCUE AND LIFESAVING EQUIPMENT
The vessel is arranged and equipped for 300
survivors according to NMD-rules
The following Rescue/Lifesaving equip. is onboard:
- 1x FRC Mob.boat
- 1x FRC Mob.boat
- 1x Dacon Rescue Scoop
- 3x Search lights, remote contr. from bridge
- Hospital with treatment bench, stretchers, medicine and poison lockers, intercom and direct ship to shore
- Communication.
- Medical equipment/medicines in acc. to NMD
For further information and possible inspection please get in touch with us!
LOA 74,9 m
Beam 18 m
Draft 6,6 m
Bollard Pull : 150 tons
Dynamic Positioning of class : DP 2
Free Deck area about 570m²
Capable of supplies of 1.116m³ Fuel Oils, 121m³ Methanol, 715m³ FW, 416m³ Liquid Mud and 302m³ Brine
Fire Fighting System of type FiFi 2 installed
1 Crane / Gear installed with a max lifting capacity of 10 tons
1 Crane / Gear installed with a max lifting capacity of 3 tons
Built in year 1997
Design is : UT 722
Class : Russian Maritime Register
Flag : Russia
Gross Tonnage of 3.095 and Nett Tonnage of 928
Deadweight : 2.918 metric tonnes
Ice classed 1C
Total passenger capacity 33 with 33 berths
Speed : 15 knots
Engines : 2 x Caterpillar / Caterpillar Inc 3616TA, 10.840 kw, 1.000 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 Caterpillar 272 kw, Bowthruster + Sternthruster (1 Bow Retract. dir. thruster + 1 Bow Thwart. FP thruster 823kw + 1 Stern Tunnel thruster)
