78m / DP 2 Multirole Dive Support Vessel
Want to contact this ship’s charterer?
Join now.
More from this charterer
GRS.Offshore Renewables GmbH
VESSEL INFO
-
Offer type
Ship for charter
-
Type
Diving Support Vessel
-
Year of construction
2009
-
Length
78m
-
Width
20.4m
-
Deadweight
2737 metric tons
-
Capacity
50 ML
-
PRICE
Price on request
DESCRIPTION
GRS identification number: #1067308

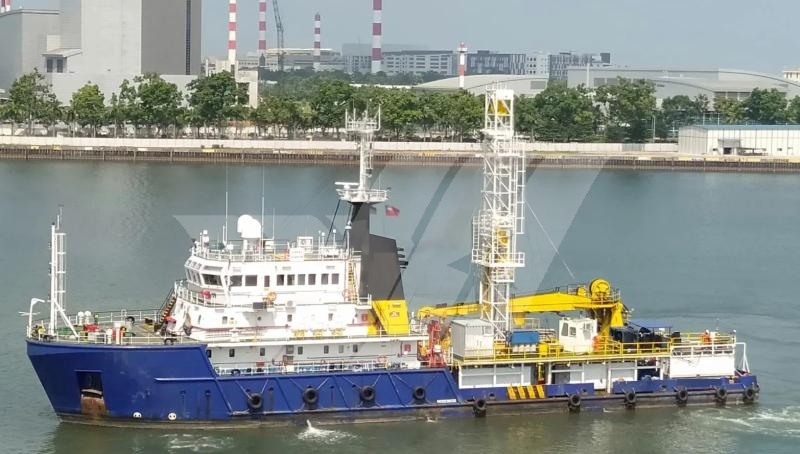

DP2 Subsea & Dive Support Vessel, fully equipped for wellhead servicing, inspection and construction diving as well as for remotely operated vehicle support, the SOV incorporates a 15-man saturation diving system capable of operating at 200m depth plus a three-man moonpool-launched diving bell.
The SOV has a 50ton SWL knuckleboom subsea crane, active heave compensated (40mT SWL). This provides true operating capability down to 1,500m water depth. The Ullswater has a 22m diameter helideck for fast transfer of crew and operating staff. Up to 120 personnel can be accommodated on board.
Please enquire further details from your dedicated broker at Global Renewables Shipbrokers.
LOA 78 m
Beam 20,4 m
Draft 5,5 m
Built in year 2009
Class : American Bureau of Shipping
Flag : Marshall Islands
Gross Tonnage of 4.473 and Nett Tonnage of 1.342
Total 120 berths
8 cabins with 1 berth
8 cabins with 2 berths
24 cabins with 4 berths
Saturated Diving System installed
Dynamic Positioning of class : DP 2
Free Deck area about 550m² with a deck strength of 5 metric tonnes per square meter
1 Crane / Gear installed with a max lifting capacity of 50 tons
1 Crane / Gear installed with a max lifting capacity of 5 tons
Deadweight : 2.737 metric tonnes
Heli Deck installed
Speed : 10 knots
Engines : 2 x Caterpillar / Caterpillar Inc 3606TA, 4.060 kw, 1.000 rpm, Propellers 1 Directional (Port Side) + 1 Directional (Starboard)
Auxiliaries Engines : Bowthruster + No Sternthruster (3 Bow Tunnel thruster 600kw)
Capable of supplies of 845m³ Fuel Oils and 1.241m³ FW
