85m / DP 2 Platform Supply Vessel

VESSEL INFO

• Offer type Ship for charter

• Type Platform Supply Vessel (PSV)

• Year of construction 2009

• Length 85m

• Width 20m



• Deadweight 5549 metric tons

• Capacity 3 ML



• PRICE Price on request


DESCRIPTION

GRS identification number: #1068286

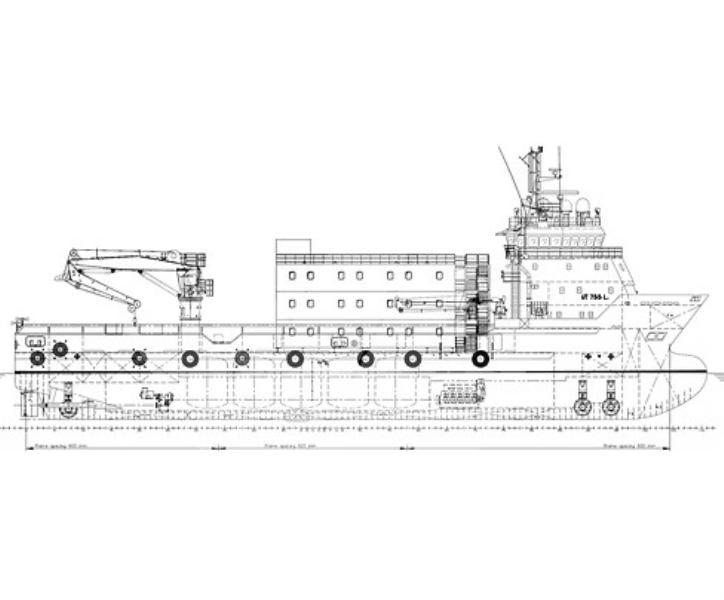

LOA 85 m Beam 20 m Draft 6,83 m Built in year 2009 Design is : VS 485 Class : DNV Flag : Norway Gross Tonnage of 4.366 and Nett Tonnage of 1.813 Dynamic Positioning of class : DP 2 Free Deck area about 1.018m² with a deck strength of 10 metric tonnes per square meter 4-Point installed Fire Fighting System of type FiFi 1 installed 1 Crane / Gear installed with a max lifting capacity of 3 tons 1 Crane / Gear installed with a max lifting capacity of 3 tons Deadweight : 5.549 metric tonnes Ice classed 1C Capable of supplies of 775.000m³ Fuel Oils, 1.007.000m³ FW and 428.000m³ Brine Total 23 berths 11 cabins with 1 berth 6 cabins with 2 berths Speed : 12 knots Engines : 4 x Caterpillar / Caterpillar Inc 3516BTA, 7.604 kw, 1.600 rpm, Propellers 1 Z Type (Port Side) + 1 Z Type (Starboard) Auxiliaries Engines : Bowthruster (2 Bow Tunnel thruster 1.000kw Brunvoll FU80 LTA-2000 15.3 t + 1 x Retract. dir. thruster 800kw Brunvoll AR-43-LNA-1450 12.3t)
