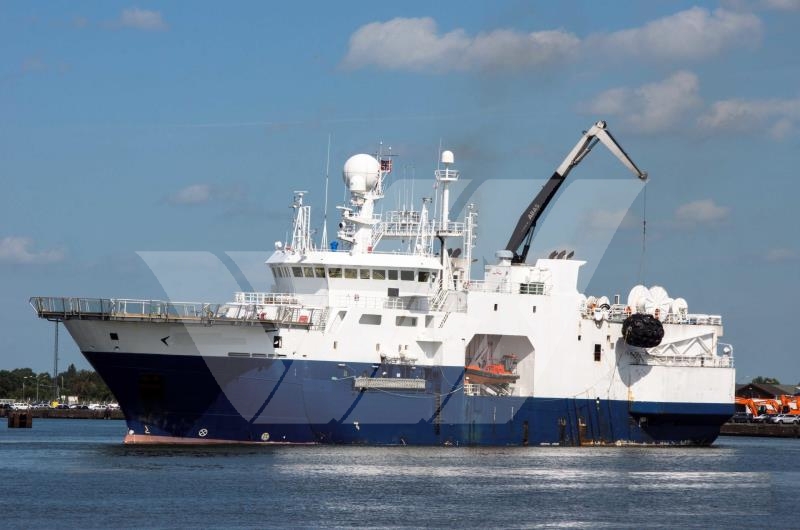

PRICE REDUCED / 114m / 310 pax Accommodation Ship

VESSEL INFO

• Offer type Ship for charter

• Type Accommodation Ship

• Year of construction 2012

• Length 113.83m

• Width 31.7m



• Deadweight 9830 metric tons

• Capacity 500 ML



• PRICE Price on request


DESCRIPTION

GRS identification number: #1098248

CAPACITIES
·Fresh Water:
o1090 m³ including DB tanks
o1200 m³ excluding DB tanks
·Fresh Water Makers: 2 x 100 tons RO type
·Sea Water: 11,800 m³
·Fuel Oil: 1630 m³
·Clear Deck Space: Open 2100 m², abt + sheltered 410 m²
·Deck Strength: 15 t/m²
·Accommodation: 300 Men comprising 310 beds:
o31 x 4-berth cabins - deck 3
o22 x 4-berth cabins - deck 4
o15 x 4-berth cabins - deck 5
o14 x 2-berth cabins - deck 5
o8 x 1-berth cabins - deck 5
o2 x 1-berth cabins - deck 6
o1x hospital / 1x client engineering office / 1x client inspection office
o11 further offices / 2 x 40 seat cinemas/conference centres
o2 x meeting rooms / helicopter reception room
8-POINT MOORING SYSTEM
·Winches: 8 x fast-operating all-electric winches
·Capacity: 1500 m of 60 mm dia
·Anchors: 8 x Flipper Delta, 10 tons
·Line Pull: 90 tons
AUXILIARY EQUIPMENT
·Generators: 7 x independently driven generating sets comprising:
o5 x CAT KW
o2 x CAT KW
o1 x 150 KW
·Total Power: 4800 KW
DECK PEDESTAL CRANE
·Make: American
·Type: Kingpost/Pedestal
·Model: 11750
·Main Hook: 228 / 132 tons
·Boom Length: 21.3 m & 45.7 m
·Upgraded To: 600 M/T lift by Q4 2014
·Deck Mobile: Manitowoc 4100 as required
PIPE LAY EQUIPMENT (OPTIONAL / not included in Sale Price)
·Availability: 1st Quarter 2015
·System: Single Joint S Lay System
·Components:
o2 x 60 Ton pipe tensioners
o4" up to 60" OD pipe
o1 x A&R winch
oConveyor System
oAUT & X-ray
o6 x 50T constant tension pipeline davits
oStinger Length of 120 m
oComplete SAS Pipelay System
HELIDECK
·Certification: Certified for Sikorski S61 in accordance with MODU regulations
SAFETY / LIFESAVING
·Standards: Vessel built to SPS2008 and MODU codes
·Equipment:
o4 x 150 Pax Lifeboats (2 x port, 2 x starboard)
oLife Rafts
Designed for the Following Offshore Activities:
·Accommodation platform
·Pipe laying activities
·Offshore construction and hook-up support
·Shallow draft operations
LOA 113,83 m
Beam 31,7 m
Draft 5 m
Total passenger capacity 310 with 310 berths
31 cabins with 4 berths
22 cabins with 4 berths
15 cabins with 4 berths
14 cabins with 2 berths
8 cabins with 1 berth
2 cabins with 1 berth
1 Deck
Built in year 2012
Flag : Nigeria
Gross Tonnage of 12.645 and Nett Tonnage of 3.793
Free Deck area about 2.100m² with a deck strength of 15 metric tonnes per square meter
Heli Deck installed
1 Crane / Gear installed with a max lifting capacity of 500 tons
Engines : Unknown Builder
