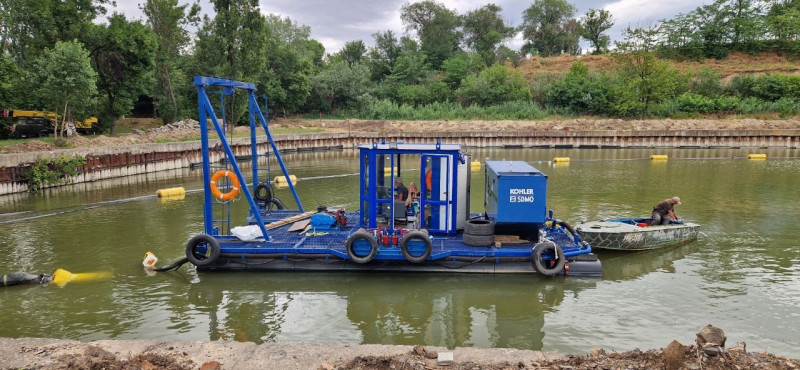

Dredge DRF-01СU with Dragflow pump EL 1204 HC

VESSEL INFO

• Offer type Ship for sale

• Type Dredger

• Year of construction 2023

• Length 9.6m

• Width 6.0m




• Asking price Price on request


DESCRIPTION

• Total maximum power consumption of mining equipment 90 kW.
• Working depth up to 25 m.
• Transport distance horizontally up to 250 m.
• Wear parts with a hardness of 650 units on Brinell provide resistance to abrasive wear.
- assembled with plastic pontoons, overall size 9600x6000 mm.
- deck covering (guard rail, rolls, bollards, foundations, etc.)
- A removable gangway for servicing the pump.


Cabin operation:
- Metal-plastic construction
- Frontal window
- Doors
- Operator's chair with dredger movement control consoles and mining equipment, interactive touch screen monitor, and pump control.
- Pump control frequency converter
- genset power connection
- External and internal lighting
- air conditioning/heating

Moving and manipulating:
- 4 electric winches with hydraulic brake pushers and pressure rollers, length of the wire up to 100 m, tractive effort up to 2 t

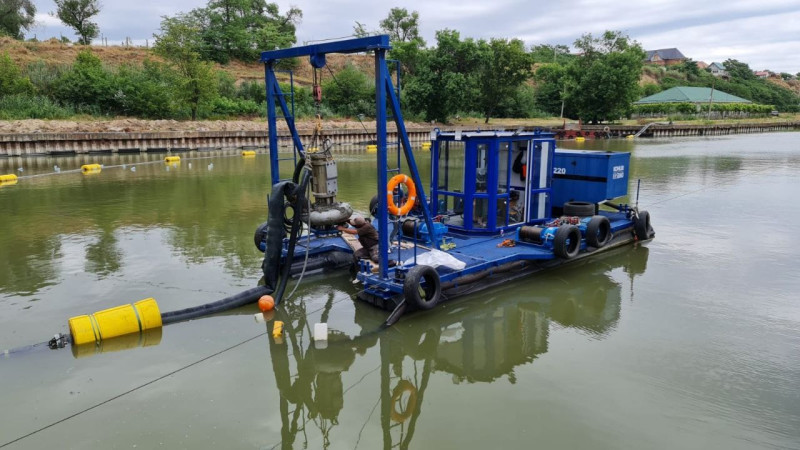

- 1 electric winch with hydraulic brake pusher and pressure rollers and a portal for manipulating mining equipment to a depth of 22 m

Dredging equipment DRAGFLOW (Italy):
Dredging pump type EL 1204 НС, complete with electric motor and cable 20 meters
Technical characteristics of the pump and electric motor:
Capacity - 720 m3 / h
Head - 16 m
Impeller - 3-blade, closed type, with a diameter of 380 mm.
Bore - 250 mm

JET-RING system
- jet pump TSURUMI (Japan):
Capacity (max) – 60 m3/h
Head (max) - 60
Power - 22 kW
- flexible hose for water supply 25 m
- washout ring with multidirectional nozzles
