AUCTION SALE 17-09-2025 - Contact GRS / 123m / Cutter Suction Dredger

VESSEL INFO

• Offer type Ship for sale

• Type Dredger

• Year of construction 2014

• Length 122.5m

• Width 21.7m



• Deadweight 1756 metric tons



• Asking price Price on request


DESCRIPTION

GRS identification number: #1080942

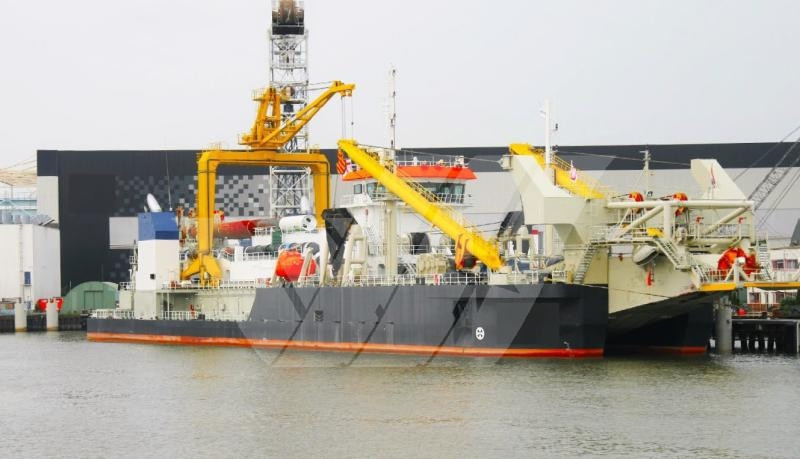

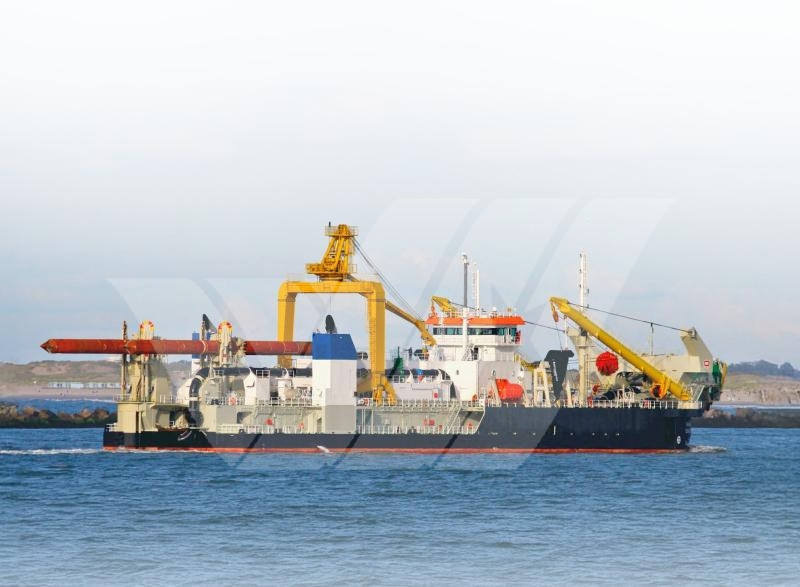

heavy-duty, self-propelled Cutter Suction Dredger (CSD) designed for coastal and port operations up to 28 meters deep. Built in 2014 by the renowned IHC shipyard, the vessel offers exceptional power (over 23,500 kW) and advanced dredging systems. Designed for coastal and sheltered water operations up to 15 meters.

Gross Tonnage (GT): 5,670 tons
Net Tonnage (NT): 1,701 tons
Maximum Speed: 9 knots
Total Power: 23,545 kW
Cutter Power: 3,500 kW
Maximum Dredging Depth: 28 meters
Total Installed Power: Approx. 23,545 kW
4 × Main Generator Sets
(~5,288 kVA - 4,230 kW each)
1 × Emergency Generator Set
(850 kVA / 680 kW)
1 × Auxiliary Unit (1,500 kVA / 1,200 kW)

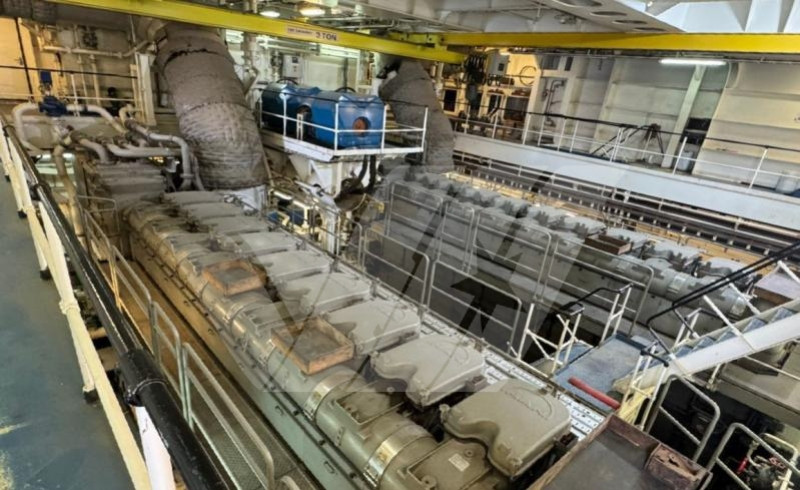

Main Engines:
2 × MAN B&W 48/60CR, 9-cylinder,
each ~3,180 kW @ 500 rpm
Propulsion Motors:
2 × Electric Motors, 1,590 kW @ 1,000 rpm
Driving ZF AT-7000 Azimuth Thrusters
(2.2 m diameter, 255 rpm)
Fuel Capacity: Approx. 1,134 m
Dredging Gear
Suction & Discharge Pipeline Diameter: 900 mm
Spud System: 2 × Spud Poles for positioning and anchoring
Deck Crane: 1 × Travelling Gantry Crane - SHF Crane Model 311
Lifting Capacity: 30 tons at 21-meter outreach
LOA 122,5 m
Beam 21,7 m
Draft 5 m
Built in year 2014
Class : Registro Italiano Navale
Flag : Saudi Arabia
Gross Tonnage of 5.670 and Nett Tonnage of 1.701
Deadweight : 1.756 metric tonnes
Speed : 9 knots
Engines : 2 x MAN / MAN Nutzfahrzeuge Nuernbe 9L48/60, 14.710 kw, 500 rpm, Propellers 1 Azimuth Elec. Dr. (Port Side) + 1 Azimuth Elec. Dr. (Starboard)
Auxiliaries Engines : Bowthruster + No Sternthruster (1 Bow Tunnel thruster)
1 Deck
