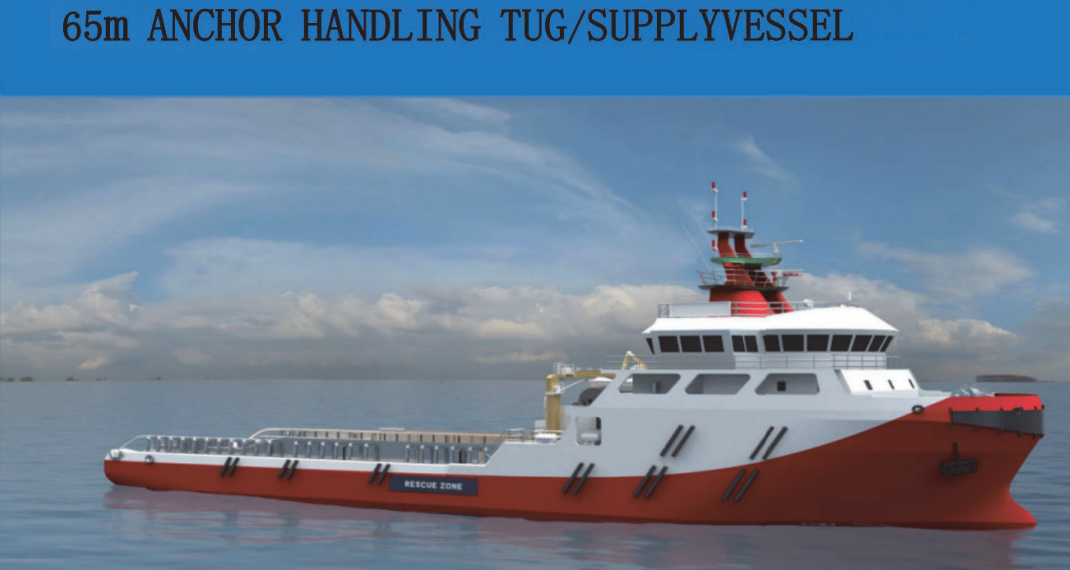

2013 BUILT 5220BHP ANCHOR HANDLING TUG SUPPLY VESSEL( AHTS)

VESSEL INFO

• Offer type Ship for sale

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Classification China Classification Society

• Year of construction 2013

• Length 59.95m

• Width 12.6m

• Depth 5.75m




• Asking price $ 7 570 000


DESCRIPTION

2013 BUILT 5220BHP ANCHOR HANDLING TUG SUPPLY VESSEL( AHTS)

BUILT:2013
CLASS:CCS
BOLLARD PULL 66.47 T
CLEAR DECK AREA 220m²

DIMENSIONS
L.O.A 59.95M
MOLDED BREADTH 12.60M
MOLDED DEPTH 5.75M
DESIGNED DRAFT 4.5M
MAX DRAFT 4.8M
GROSS TONNAGE 1022
NET TONNAGE 306
DEADWEIGHT 700T
DECK STRENGTH 5T/m²

MACHINERY & DECK EQUIPMENT
MAIN PROPULSION YANMAR 6EY26 DIESEL, 2 x 2610BHP@ 750RPM (TOTAL POWER 5220 BHP)
PROPELLERS 2*CPP IN FIXED NOZZLES
BOW THRUSTER 4.5 TONS THRUST CONTROLLABLE PITCH,ELECTRICAL-DRIVEN
SHAFT GENERATORS 3*350KW OUTPUT CATERPILLAR C18,415V/3P/50HZ
AUXILIARY GENERATORS 1x 82KW OUTPUT CATERPILLAR C4.4 EMERGENCY/HARBOUR GEN-SET


NAVIGATION & COMMUNICATION EQUIPMENT
X-BAND RADARS
ECHO SOUNDER
AUTOPILOT
SPEED LOG
WEATHER FAX
INMARSAT-C


TOWING AND ANCHOR-HANDLING
ANCHOR WINDLASS ELECTRO-HYDRAULIC,CABLE LIFTER@ 6 TONS
CAPSTAN 2 x 5T@15M/MIN
TUGGER WINCH 2 x 10T@12M/MIN
DECK CRANE 2 TON x 9 M
OUTREACH TOWING/AH WINCH BRAKE HOLDING CAPACITY@180 TONS
LINE PULL 200MT x 10M/MIN
TOW PINS 1 x 200MT SWL
DECK REEL 52MM x 1000M/ 10MT x 20M/MIN


ACCOMMODATION
1 PERSONS CABIN x 2 2
2 PERSONS CABIN x 3 6
4 PERSONS CABIN x 4 16
TOTAL 24 PERSONS.


CAPACITY AND TRANSFER R ATE
FUEL OIL : 670m³@100m³/HR AT 7 BAR
FRESH WATER: 234m³@100m³/HR AT 7 BAR


EXTERNAL FIRE FIGHTING & ANTI-POLLUTION
EXTERNAL FIFI PUMPS: 2 x SEAWATER FIRE PUMP 1500m³/HR
FIRE BLANKET : 2 UNITS,PROVIDED IN ENGINE ROOM AND GALLERY
FIREMAN'S OUTFIT: 4 COMPLETE SETS
FIRE AXE: 2 UNITS
CO2 SYSTEM: 1 UNIT
G.S. & FIRE PUMP: 1 UNIT,25m³/HR @ 45MWC
EMERGENCY FIRE PUMP: 25m³/HR @ 45MWC


RESCUE EQUIPMENT
6-MEN RESCUE BOAT 25HP.
LIFEBUOYS: 8 UNITS,4 x LIFEBUOYS @ 90 FEET BUOYANCY LINE & 4 x LIFEBUOYS@ 90 FEET BUOYANCY LINE AND SELF-IGNITING ELECTRIC LIGHTS &
2 x SMOKE SIGNALS
LIFEJACKETS: 27 UNITS
WORK BOAT: 1 x 6 MEN SEMI-RIGID OR RIGID WORK BOAT @ 40HP OUTBOARD
MOTOR TO BE PROVIDED

THE EX CHINESE PORT PRICE IS USD7.57 MILLION
