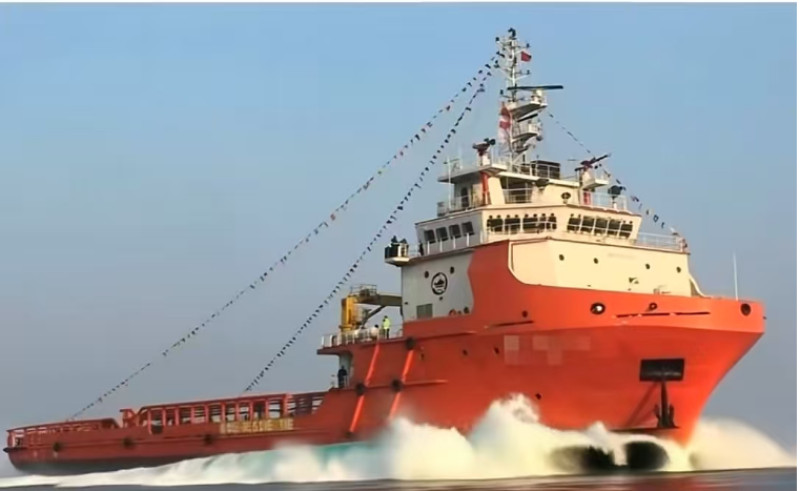

2018 built 12,240BHP AHTS Anchor Handling Tug Supply

VESSEL INFO

• Offer type Ship for sale

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Classification China Classification Society

• Year of construction 2018

• Length 68m

• Width 18m

• Depth 7.5m




• Asking price $ 18 900 000


DESCRIPTION

主要数据
GENERAL DATA
建造年份 Year Built 2018
船舶类型 Ship type AHTS
船旗 Flag 中国 (CHN)
船籍港 Registry port 宁波 (NINGBO)
船舶登记号 Registranon No
IMO号 IMO No.
呼号 CALL No.
船级 Classification CCS
入级符号及附加标志
Entry sign and additon mark ★CSA
OFFshoreTug/SupplyShip/Fire fighting ship:IceClass B
★CSM

主要尺寸
Main dimensions
总长 L.O.A 77.0m
型宽 B.Mld 18.0m
型深 D.Mld 7.5m
满载吃水 Full-load draft 6.2m
空载吃水 No-load draft 3.7m
总吨 Gross tonnage 2992
净吨 Net tonnage 1075
载重吨 DWT 3098.5

航速
Speed
最大航速 Maximum speed 15knots
经济航速 Economic speed 12knots

甲板载货能力
Deck capacities
甲板面积 Deck capacities 15.5m×14.5m, 800sq.m
甲板载货能力 Deck cargo capacities 730t
甲板强度 Deck strength 5.0t/sq.m

货舱容量
Cargo capacities
饮用水 P.water 248.6cu.m
钻井/压载水 D.water 1578.8cu.m
燃油 Fuel oil 823.5cu.m
散装货物 Dry bulk 240.0cu.m
液态泥浆舱 Liquid mud tank 564.6cu.m

货物输送率
Goods delivery rate
饮用水 P.water 208cu.m/hr at 0.93MPa
钻井/压载水 D.water 308cu.m/hr×2at 0.90MPa
燃油 Fuel oil 192cu.m/hr×2at 0.90MPa
散装货物 Dry bulk 75t/hr at 0.88kpa
液态泥浆舱 Liquid mud tank 75cu.m/hr×2 at 1.58MPa

住舱
Accommodation
船员 Crew 17 Bunks
乘客 Passenger 12 Bunks

机械设备
Machinery &equipment
主机 Main engines 2×MAN B&W 8L32/40
主机功率 Main engines power 2×4500 KW,Total 9000 KW
螺旋桨 Propeller 2×4 blades C.P.P
发电机组 Generator sets 2×800 KW 2×1600 KW
前侧推 Bow thruster 2×660 KW=1320 KW
后侧推 Stern thruster 1×660 KW=660 KW
系柱拉力 Bollard pull 1555 KN
甲板吊机 Deck crane 2t—10m

动力定位系统
DP
DP2 GE-C

拖带&起抛锚设备
Towing/anchor handling equipment
主拖缆机 Main tow wire machine 157.457T 液压拖缆机(hydraulic towing machine)
拖缆滚筒 Tow roller 157.457T ＠5m/min
主拖缆 Main handling roler 476-ZAAB×375TR+1BR+1960 (3pcs)
起抛锚缆 Anchor handling wire 476-ZAAB×375TR+1BR+1960 (3pcs)
起抛锚滚筒 Anchor handling roller 157.457T ＠5m/min
鲨鱼钳 Shark pliers 400T 单钓销(single pin) (2pcs)
艉滚筒 Stern roller 400T 单钓销(single pin)
缆车 Winch 157.457T Stern Roller
立式系泊绞车 Vertical mooring winch 2×1000kN at 9.15m/min
绞车 Towing spiiers 2×1000kN at 0-15m/min

救生设备
Survival equipment
救生服 Survival suit 39
救生筏 Life Raft 6×20Persons
救助艇 Rescue boat 1×8Persons
对外消防 External fire High Water Spraying System:
Water:2×1200cu.m/hr
Lenght of Throw:120m
Height of Throw:45m

通讯&导航设备
Navigation/communication
主罗经 Gyro compass AP50×2
磁罗经 Magnetic compass SR-165FSK×1
雷达 Radars FURUNO-2137×2
C站 Satellite station C FURUNO-15×1
单边带 SSB SRG-3150DNX×1
高频 VHF telephone FM-8800S×2
卫星定位 GPS GP-150×1
气象传真 Meteorological facsimile FAX-408×1
测深仪 Echo sounder FE-700×1
雷达反射器 Radar station DS-169FSP×1
应急无线电示位标 EPRIB E100×1
航海警告接受仪 Navigation receiver log NX-700×1
DS-80×1














2018 built 12,240BHP AHTS Anchor Handling Tug Supply
Flag: China
Classification Society: CCS (China Classification Society)
Navigation Area: Unlimited (A1 + A2 + A3)

Principal Dimensions:
- Length Overall (LOA): 68.00 m
- Beam (Moulded): 18.00 m
- Depth (Moulded): 7.50 m
- Full Load Draft: 6.20 m
- Deadweight (DWT): 3,200 tonnes
- Hull Material: Steel

Tonnage:
- Gross Tonnage (GT): 3,100
- Net Tonnage (NT): 1,680

Performance & Propulsion:
- Speed: 17 knots
- Bollard Pull: 158 tonnes
- Main Engines: 4,500 kW × 2 (Total 12,240 BHP)
- Bow Thrusters: 660 kW × 2 (1,320 kW total)
- Stern Thruster: 660 kW × 1
Equipped with DP2
