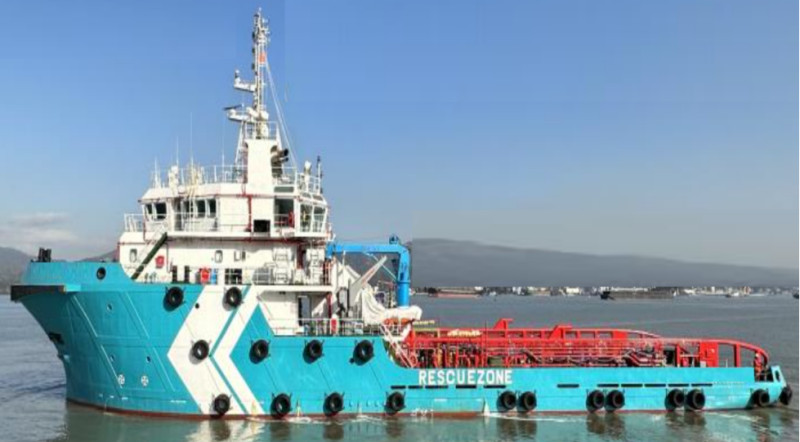

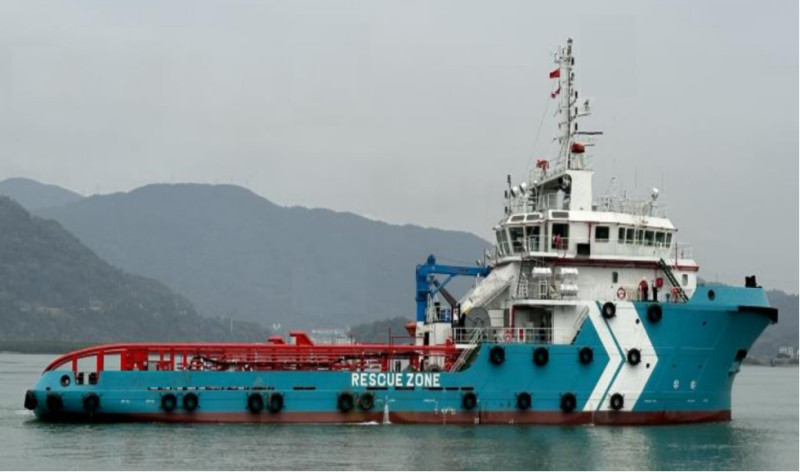

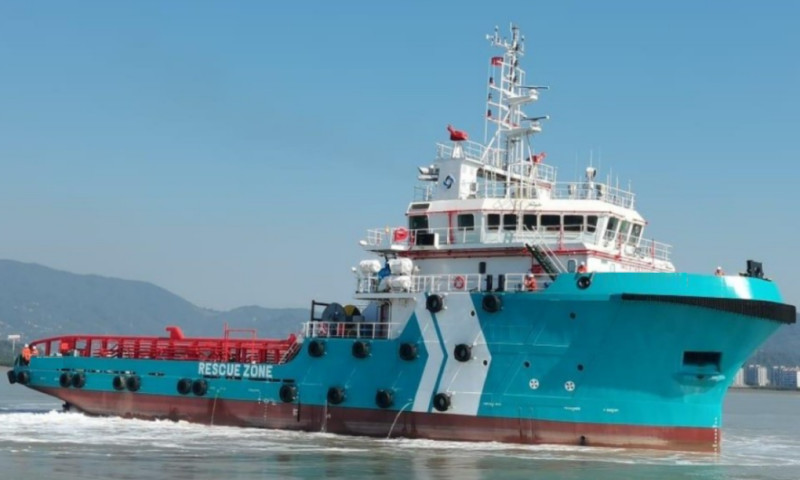

2024 BUILT 5150BHP ANCHOR HANDLING TUG SUPPLY VESSEL(AHTS)

VESSEL INFO

• Offer type Ship for sale

• Type Anchor Handling Tug Supply Vessel (AHTS)

• Classification American Bureau of Shipping

• Year of construction 2024

• Length 59.25m

• Width 14.95m




• Asking price Price on request


DESCRIPTION

2024 BUILT 5150BHP ANCHOR HANDLING TUG SUPPLY VESSEL(AHTS)
BUILT:2024
CLASS:ABS
BOLLARD PULL 67 T
CLEAR DECK AREA 340m²

DIMENSIONS
L.O.A 59.25M
MOLDED BREADTH 14.95M
MAX DRAFT 4.95
GROSS TONNAGE 1679
NET TONNAGE 503

MACHINERY & DECK EQUIPMENT
MAIN PROPULSION CAT 3516B DIESEL,2575BHP x 2
PROPELLERS 2*CPP IN FIXED NOZZLES
BOW THRUSTER 2*KT-130 515KW Electric motor ,Total thrusst :13mt
GENERATORS 2*350KW DIESEL DRIVEN
EMERGENCY GENERATORS 1x 99KW WeiChai diesel engine.
Shaft generator:800KW
RUDDERS STANDARD
DECK CRANE 1 x 3 T,9M
DECK CARGO 500T
TUGGER WINCH 2*10 TONS
CAPSTAN 2*5 TONS

NAVIGATION & COMMUNICATION EQUIPMENT
RADARS 2 UNITS
NAVTEX 1 UNIT
GPS 1 UNIT
AIS 1 UNIT
ECHO SOUNDER 1 UNIT
AUTOPILOT 1 UNIT
GYRO-COMPASS 1 UNIT
E.P.I.R.B 1 UNIT
VHF 3 UNITS
INMARSAT-F 1 UNIT
INMARSAT-C 1 UNIT
M/HF DSC/SSB/NPBD 1 UNIT
VAST 1 UNIT
GMDSS COMPLIANCE 1 UNIT

TOWING AND ANCHOR-HANDLING
WINCH MACGREGOR/HYDRAULIC
LINE PULL 150TONS
ANCHOR HANDLING WIRE LENGTH 100M*56MM
TOW WIRE LENGTH 800M*56MM


ACCOMMODATION
CREWS ACCOMMODATION 12
PASSENGERS 18
TOTAL: 30

CAPACITY AND TRANSFER RATE
FUEL OIL : 535m³@150m³/HR AT 75M HEAD
FRESH WATER: 360m³@100m³/HR AT 75M HEAD
DRILL WATER: 400m³@100m³/HR AT 75M HEAD
LIQUID MUD: 419m³@75m³/HR

EXTERNAL FIRE FIGHTING & ANTI-POLLUTION
CAPACITY: FIFI 1-2400m³/HR
MONITOR: 2* 1200m³/HR
THROW* HEIGHT: 120M * 45M

DP : DP1

RESCUE EQUIPMENT
LIFERAFTS: 4UNIT* 25 =100MEN
6-MEN RESCUE BOAT 25HP.
