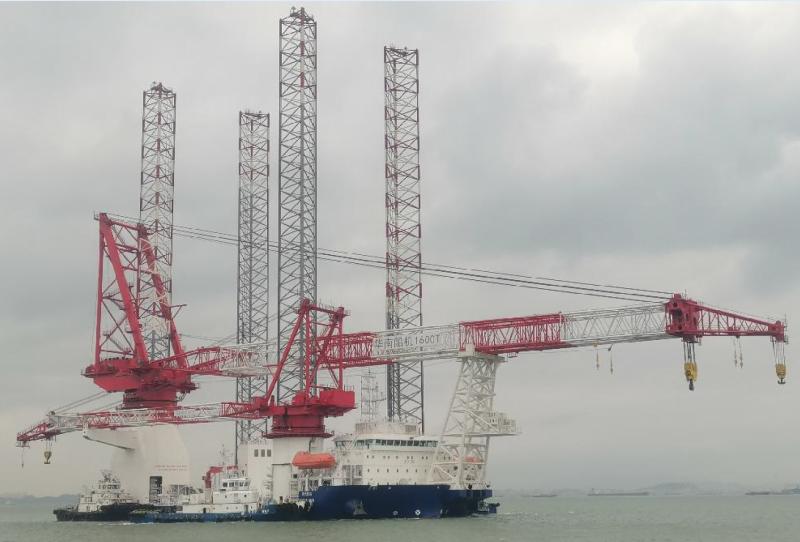

1600-ton wind turbine installation platform vessel for sale

VESSEL INFO

• Offer type Ship for sale

• Type Jack-up

• Classification China Classification Society

• Year of construction 2022

• Length 125m

• Width 48m

• Depth 9.5m

• Asking price Price on request


DESCRIPTION

1600-ton wind turbine installation platform vessel for sale

– Full Technical Specification
1. GENERAL INFORMATION
Vessel Type: Wind Turbine Installation Unit (WTIV), Self-elevating, Self-propelled
Designer: China Merchants Marine Equipment Research Institute Co., Ltd. (CMMI)
Class Society: CCS (China Classification Society)
Class Notation:
★ CSA Self-elevating, Offshore Wind Turbine Service Unit, Lifting Appliance, PSPC(B), G-EP(GPR)
★ CSM AUT-0, DP-2, Electrical Propulsion System
Flag: China
IMO No.: 9986192
Operating Area: Offshore wind farms, maximum operating water depth 70m
Year of Delivery: Newbuilt
2. PRINCIPAL PARTICULARS
Length Overall (LOA): 125.14 m
Length Between Perpendiculars (LBP): 118.27 m
Breadth Moulded (B): 48.0 m
Depth Moulded (D): 9.5 m
Design Draft: 6.6 m
Service Speed: 8.0 knots
Endurance: 30 days
Operating Temperature: -10°C ~ +45°C
Leg & Jacking System
Number of Legs: 4 (Truss Type)
Length of Legs: 131.08 m
Spudcan Area: 220 m²
Maximum Leg Penetration: 30 m
Maximum Air Gap: 12 m
Maximum Elevated Weight: ~25,000 t
Maximum Wave Height (Survival): 15 m
Operating Wind Speed: 36 m/s
Current Speed: 3.0 knots
Cargo & Payload
Cargo Deck Area: 3,400 m²
Variable Load: 5,500 t
Deck Strength: Suitable for wind turbine components, foundation, tower, nacelle, blades
3. ACCOMMODATION
Total Capacity: 128 persons
Suites: 3
Single Cabins: 9
Double Cabins: 18
Four-person Cabins: 20
Hospital: 1
Full facilities: mess rooms, galley, gym, recreation room, laundry, cold stores
4. TANK CAPACITIES
Fuel Oil Tank: 1,366 m³
Fuel Oil Day Tank: 68 m³
Fresh Water Tank: 420.5 m³
Potable Water Tank: 385.4 m³
Ballast Water Tank: 14,644 m³
Sewage Tank: 131.8 m³
Grey Water Tank: 169.4 m³
Bilge Holding Tank: 96.3 m³
5. PROPULSION & POWER SYSTEM
Main Generators (6 sets)
Engine: DAIHATSU 8DK-28e
Rated Power: 2,635 kW
Speed: 750 rpm
Voltage: 690 V, 50 Hz, 3 ph
Emergency Generator (1 set)
Type: HDC-CCFJ450Y-W
Rated Power: 450 kW
Voltage: 400 V, 50 Hz
Propulsion
Aft Thrusters (3 sets): Azimuth, 3,000 kW each, VFD drive
Bow Thrusters (2 sets): Tunnel type, 2,000 kW each, VFD drive
Dynamic Positioning: DP-2
Jacking System
Type: TSC-SJ550V-PR-S0.8 (Electric drive)
Normal Jacking Load: 250 t
Preload Jacking Load: 375 t
Static Holding Load: 650 t
Storm Holding Load: 680 t
Lifting Speed: 0.8 m/min (hull); 1.0 m/min (legs)
6. CRANE SYSTEM
Main Crane – 1600 t LEC (Leg-Encircling Crane)
Main Hook: 1600 t @ 30.3–39.5 m
Whip Hook: 450 t @ 33.9–70 m
Lifting Height (above deck): Main 175 m / Whip 195 m
Lifting Height (below deck): 25 m
Speed (full load): Main 0–3.0 m/min; Whip 0–5.0 m/min
Rotation: Full circle
Power: 690V, IP56
Auxiliary Crane – 300 t LEC
Main Hook: 300 t @ 20.7–42 m
Whip Hook: 15 t @ 23.2–89.5 m
Lifting Height (above deck): 88.6 m / 100.6 m
Rotation: ±220°
Working Crane (2 pcs)
10 t @ 20 m
7. NAVIGATION & AUTOMATION
DP-2 System
Full RADAR, AIS, Gyro, Magnetic Compass, VDR, GMDSS
Engine Room Automation: AUT-0
Fire Alarm System, Tank Gauge, Valve Remote Control System
8. ENVIRONMENTAL & SAFETY SYSTEMS
Ballast Water Treatment System
Oily Water Separator
Sewage Treatment Plant
Lifeboats, Rescue Boats, Life Rafts, Life Saving Appliances
Firefighting Systems
9. CLASS & COMPLIANCE
CCS Class
PSPC, EPS, SOLAS, MARPOL
DP-2, AUT-0, Electrical Propulsion
