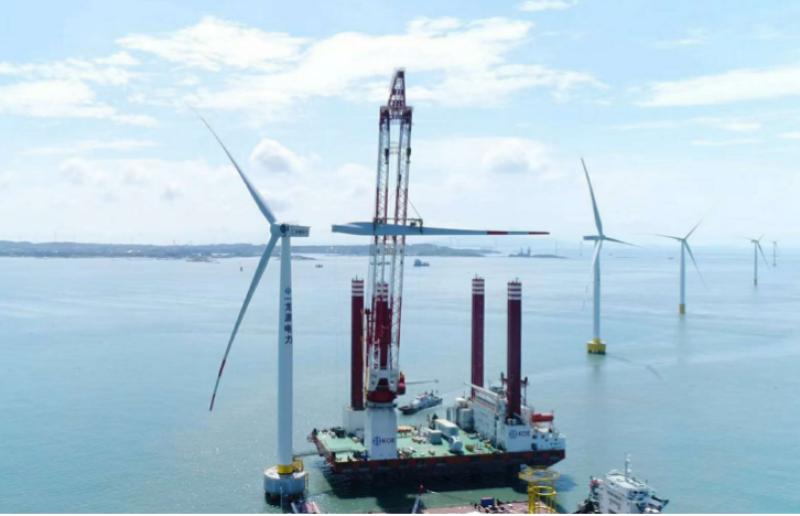

800-ton Offshore Wind Turbine Installation Platform Vessel for Sale

VESSEL INFO

• Offer type Ship for sale

• Type Offshore Wind Installation Vessel

• Classification China Classification Society

• Year of construction 2017

• Length 85.8m

• Width 40m

• Depth 7m

• Asking price Price on request


DESCRIPTION

800-ton Offshore Wind Turbine Installation Platform Vessel for Sale
Length: 85.80m, Width: 40.00m
Depth: 7.00m, Design Draft: 4.50m
Structural Draft: 4.80m, Number of Legs: 4 (Shell-type)
Leg Length: 93.50m, Operating Water Depth: 5.00-58.50m
Deck Area: 2000㎡, Berths: 80P
Self-Endurance: 30d, Deck Variable Load: 2500 tons
Lifting Capacity (SWL):
-Main Hook: 700t@25m,
-Secondary Hook: 350t@36m
-Stabilizing Hook: 2t×2,
-Ribing Hook: 10t×2
Lifting Speed ​​(Outermost Layer): - Main hook: 4m/min (full load), 7m/min (half load), 8m/min (unloaded)
- Secondary hook: 10m/min (full load), 20m/min (45t)
- Stabilizing hook: 17m/min (full load), 34m/min (unloaded)
- Rigging hook: 17m/min (full load), 34m/min (unloaded)
Working radius:
- Main hook: 22.9m-77.0m; Secondary hook: 27.0m~87.2m
- Stabilizing hook: 13.4m~80.0m; Rigging hook: 22.5m~74.8m
Lifting height:
- Main hook: 120m above deck; 20m below deck
- Secondary hook: 135m above deck; 40m below deck - Stabilizing hook: Stabilizing hook; 40m below deck surface
- Rigging hook: 135m above deck surface, 40m below deck surface
- Luffing time: (Unloaded) approx. 23min (0° - 82°); (Loaded) approx. 13min (48.4° - 82°)
- Luffing angle: 48.4° - 82°
Slewing speed
- Full load: ~0.15 r / min
- Unloaded: ~0.30 r / min
Slewing range: ±210°
