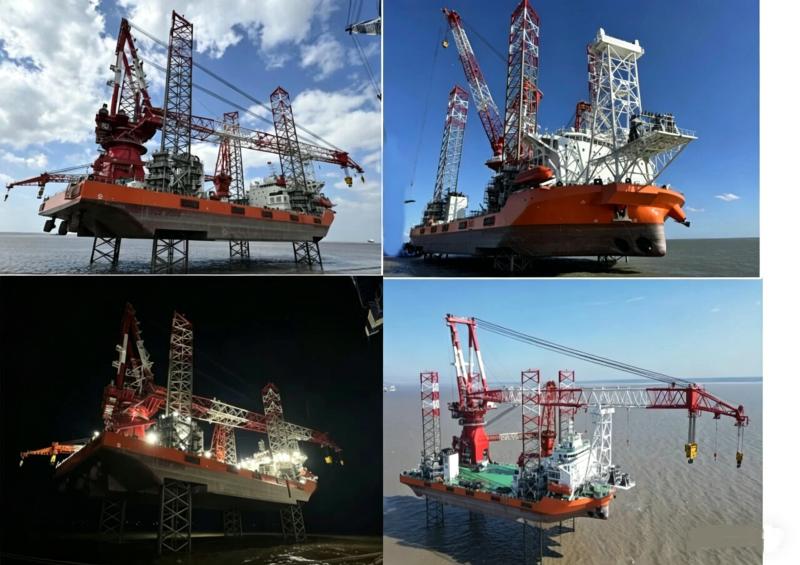

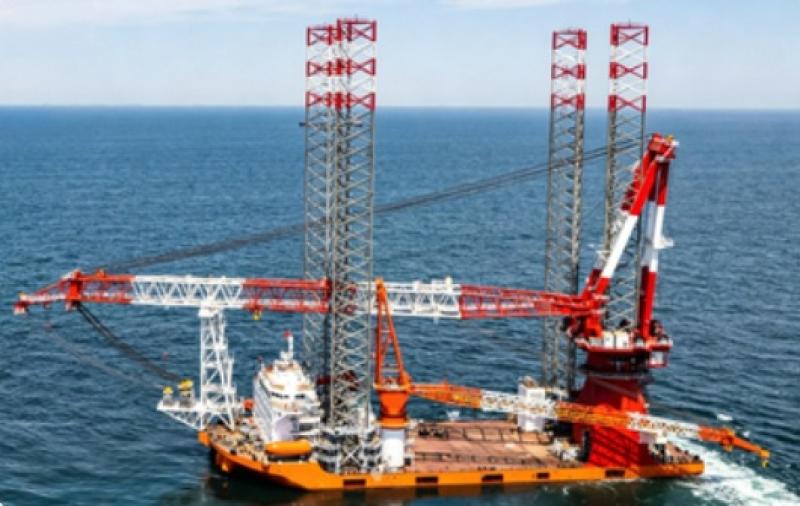

2025-built 1600t Lift capacity self-propelled self-elevating offshore crane / wind turbine installation vessel

VESSEL INFO

• Offer type Ship for sale

• Type Offshore Wind Installation Vessel

• Classification China Classification Society

• Year of construction 2025

• Length 140m

• Width 48m

• Depth 9.6m

• Asking price $ 175 000 000


DESCRIPTION

2025-built 1600t Lift capacity self-propelled self-elevating offshore crane / wind turbine installation vessel

1. Principal Particulars
Length overall / Breadth / Depth: 140m / 48m / 9.6m
Full load draft: 6.6m
Design speed: 8 knots
Leg length: 120m
Max. operating water depth: 70m
Frame spacing: 0.65m
Deck cargo area: 3,500 m²
Deck load (cargo area): 12 t/m²
Variable load: 5,800 t
Accommodation: 120 persons
Class society: CCS (IACS)
Navigation area: Unlimited, A1+A2+A3

2. Deck Cranes
Bow telescopic service crane: 8t (cargo) / 2t (personnel) @ 4–28m
Stern telescopic service crane: 5t (cargo) / 1.5t (personnel) @ 5–33m
Auxiliary crane main hook SWL: 450t
Max./min. working radius: 80m / 18.5m
Auxiliary crane auxiliary hook SWL: 40t
Max./min. working radius: 90m / 21.5m
Main crane main hook: 1,600t @ 31m
Main crane auxiliary hook: 350t @ 23m

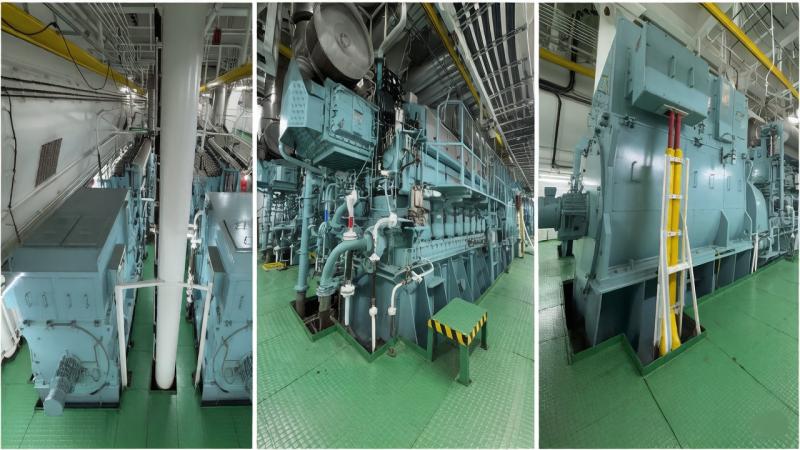

3. Generators
Main generator sets: Anqing CSSC 8DK / 2,340 kW × 6 units
Harbour generator set: Chongqing Cummins S6L1M / 800 kW × 1 unit
Emergency generator set: Chongqing Cummins K19 / 400 kW × 1 unit

4. Propulsors
Azimuth thrusters: Nanjing High Precision / 2,400 kW × 3 units
Transverse thrusters: Nanjing High Precision / 2,000 kW × 2 units
The EX Chinese port price is usd175 million
