3000 TLC FLOATING CRANE FOR SALE
VESSEL INFO
-
Offer type
Ship for sale
-
Type
Floating Crane
-
Classification
No classification
-
Year of construction
1978
-
Length
94.00m
-
Width
40.00m
-
Depth
7.80m
-
Asking price
Price on request
DESCRIPTION

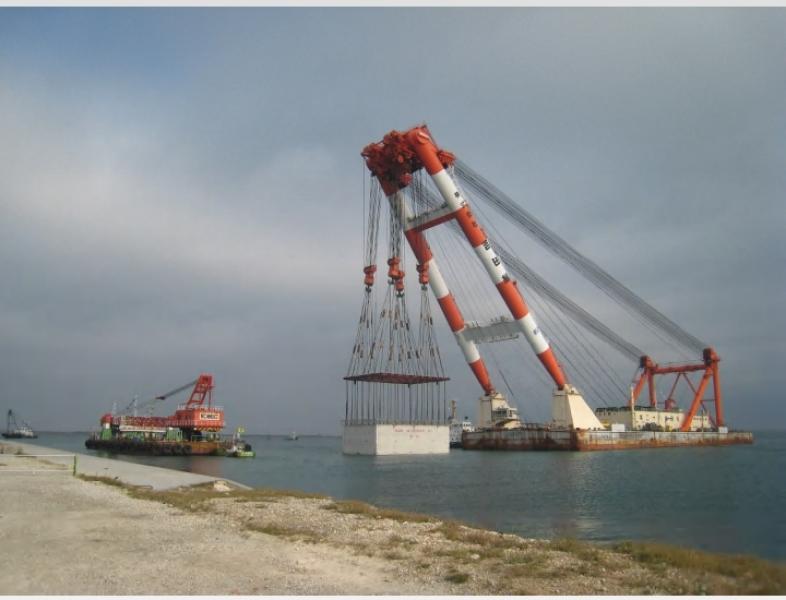

FLOATING CRANE (LIFTING JIB TYPE FLOATING CRANE)
FLAG: CHINA
BUILT: 1978, AT SUMITOMO HEAVY INDUSTRIES, JAPAN
(BARGE: BUILT ON 1978, CRANE PART: BUILT AT JAPAN ON 2010)
L/B/D/DRAFT: 94.0 / 40.0 / 7.8 / 4.80 M
M/E: YANMAR 1,400 PS X 720 RPM X 2 SETS, (1,150 KVA X AC 450 V)
A/E: 834 PS X 1,500 RPM X 1 SET (700 KVA X AC 200 V)
95 PS X 1,200 RPM X 1 SET (75 KVA X AC 450 V)
LIFTING CAPACITY: 750 T X 4 SETS (TOTAL 3,000 T)
OUT REACH: 30.0 M (AT 3,000 T LOADED) / 40.0 M (AT 2,000 T LOADED)
LIFTING HEIGHT: ABOVE THE DECK 58, UNDER THE DECK 4, TOTAL 62 M AT 3,000T LOADED
ABOVE THE DECK 50, UNDER THE DECK 4, TOTAL 54 M AT 2,000T LOADED
HOISTING SPEED: 0.8 M/MIN AT OVER 1,400 T LOADED, 1.6 M/MIN AT UNDER 1,400T LOADED
LUFFING SPPED: ABT 40 MIN JIB ANGLE 61.0-50.6 OUT REACH 30-40 M
ABT 120 MIN JIB ANGLE 61.0-23.0 OUT REACH 30-58 M
LIFTING HEIGHT: 50 MIN, 83 M (MAX.) ABOVE WATER LINE
DISTANCE BETWEEN HOOKS: FRONT AND REAR 5.0 M / RIGHT AND LEFT 8.0 M
DECK WINCH: SHIP OPERATION WINCH 50 T X 9 M/MIN X 2 SETS,
HANDLING WINCH 25 T X 12 M/MIN X 2 SETS,
HANDLING WINCH 25 T X 9 M/MIN X 4 SETS,
TOWING WINCH 25 T X 9 M/MIN X 2 SETS,
MISCELLANEOUS WINCH 10 T X 25 M/MIN X 5 SETS,
MISCELLANEOUS WINCH 5 T X 30 M/MIN X 5 SETS,
LAST DD: AUGUST 28, 2025
LOCATION: NINGDE, CHINA
< ADDITIONAL INFORMATION >
< MACHINERY PARTS >
MAIN GENERATOR DIESEL 1,400PS X 720RPM X 2 SETS
AUX. GENERATOR DIESEL 834PS X 1,500RPM X 1 SET / 95PS X 1,200RPM X 1 SET
< ELECTRIC PARTS >
MAIN GENERATOR 1,150KVA X A/C450V X 2 SETS
AUX. GENERATOR 700KVA X A/C200V X 1 SET / 75KVA X A/C450V X 1 SET
< CRANE PARTS >
TESTING LOAD OF STABILIZED LIFTING 3,810TONS
LIFTING CAPACITY 3,000TONS
OUT REACH 30M AT 3,000T LOADED // 40M AT 2,000T LOADED
LIFTING HEIGHT 62M AT 3,000T LOADED // 54M AT 2,000T LOADED
HOISTING SPEED 0.8M/Min. ~ 1.6M/Min.
LUFFING SPEED ABT. 40Min. ~ 120Min.
HEIGHT (min.) 50M ABOVE WATER LINE
DISTANCE BETWEEN HOOKS 5M FRONT AND REAR // 8M RIGHT AND LEFT
== THE ABOVE DETAILS ARE W.O.G. =
