MPP Support Vessel

Want to contact this ship’s broker?
Join now.

Lager Maritime Corp.

VESSEL INFO

Offer type Ship for sale
Type Multi-Purpose Vessel
Year of construction 1964
Length 42m
Width 8m
Asking price $ 775 000

DESCRIPTION

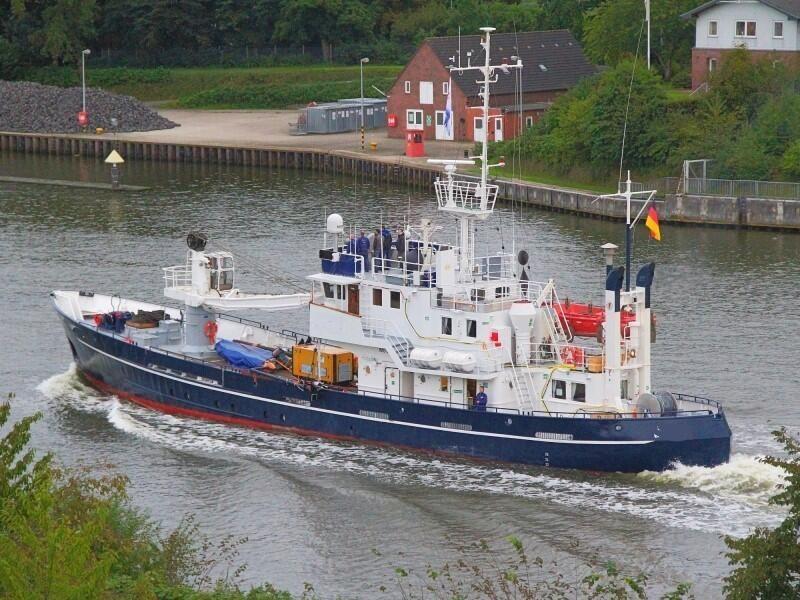

COMMENTS This is a 137’ Multi-Purpose Buoy Tender built in Germany in 1964 and extensively rebuilt and refitted in 2012 to 2013. It has 9.0 mt swl forward mounted deck crane and a stern mounted A-Frame making it suitable for buoy tending, dive support, and survey work. Other possible roles include guard and escort duty. It is shallow draft so it can navigate in areas where other commercial ships are too deep to operate. The ship is in excellent, fully operational condition and is in current Lloyds Class. The ship would also make for a nice expedition yacht conversion. It it is well priced for a ship with this capability and excellent condition. GENERAL INFORMATION Type Multipurpose Offshore Vessel/Buoy Tender Year Built 1964, rebuilt 2012/2013 Yard Built J.G.Hitzler, Germany Class LR 100 A1 SSC Cargo (A) Mono G3 DIMENSIONS Length 41.45 m/136 ft 5 in Breadth 8.09 m/26 ft 7 in Draft Max 2.0 m/6’ 7 in Air draft over basis 22.0 m/72 ft 2 in Displacement 330.0 mt Gross Tonnage 263.0 mt MACHINERY Main Engines 2 x MAN W8V 17.5/22 AmA each 257 kW/344 HP @ 850 rpm Propulsion 2 x Voith-Schneider 14E/90, 4 blades 1,400 mm dia. Generators 2 x AEG G77 each 29 kW/230 V 2 x AEG G97 each 65 kW/230 V all coupled to the main engines Fuel Consumption Transit with 8–9 knots 2.1–2.6 m³/day Standby/port: 0.5 m³/day Auxiliary Engines Still G206-34 34 kW/230 V Air Compressor 2 x Hatlapa L35 F, one/e-motor Pramac P18000 18 kVA/400 V (on deck) TANKAGE Diesel 24 m³ Fresh Water 20 m³ CARGO & DECK Clear Deck Space 100 m2 approx. Deck Load 3.0 mt/m² Load Capacity 20.0 mt Deck Crane 1 x Kampnagel type 9/3.5-8.5 max. lifting capacity (main hoist) SWL 9.0 mt max. radius at 9.0 mt load is 8.5 m min. radius at 9.0 mt load is 3.5 m max. hook height above deck 10.0 m Mobile A-Frame SWL 1.0 mt, located on aft deck Gear Tray for side scan and multibeam Service/Fire Pump 1 Additional buoy laying equipment is available NAV/COM Radars 2 GPS 1 Echo Sounder 1 Elect. Chart Plotter 1 Satellite Nav 1 Compass Several VHF 3 AIS 1 NAVTEX 1 Med. Range Radio 1 ACCOMMODATION Double Cabins 3 Single Cabins 4 Total Berths 10 Survey/Office Rm. 1 on the bridge level Crew Mess Room 1 Guest Mess Room 1 Bridge Wheelhouse 1 Office/Chart Room 1 Cargo Hold ADDITIONAL Lifeboat on Davits Life Rafts in Cannisters
