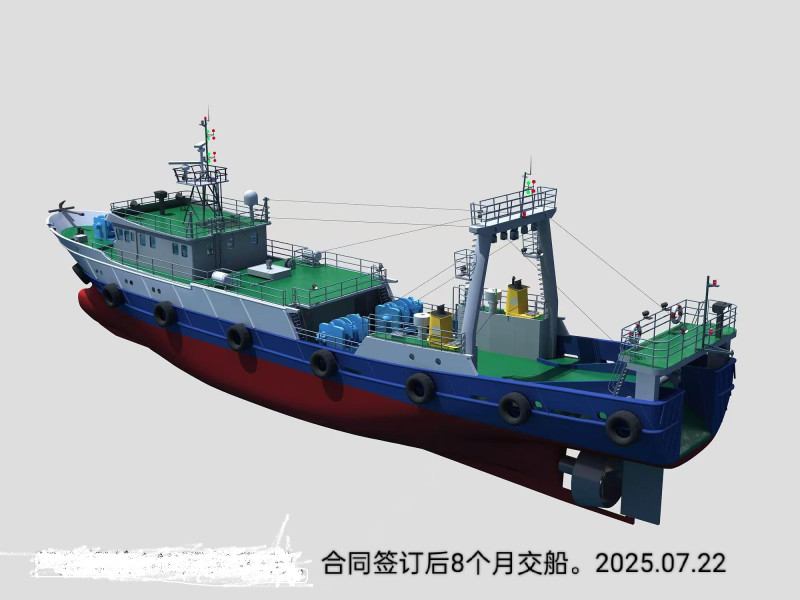

44.9m OCEAN STERN TRAWLER

Want to contact this ship’s broker?
Join now.

More from this broker

China Quanzhou Anwangda ship import and export trading Co., LTD


VESSEL INFO

  • Offer type Ship for sale
  • Type Fishery Support Vessel
  • Classification China Classification Society
  • Year of construction 2025
  • Length 45m
  • Width 7.6m
  • Depth 3.8m


  • Asking price Price on request

DESCRIPTION

44.9m OCEAN STERN TRAWLER
总 长 Loa LENGTH O.A. 44.90 m 鱼舱容积 FROZEN FISH HOLD abt.211 m3
垂线间长Lpp LENGTH,B.P. 39.00 m 燃油舱容积 FUEL OIL TANK abt.220m3
型 宽 B BREADTH MLD 7.60 m 淡水舱容积 FRESH WATER TANK abt.23.6m3
型 深 D DEPTH MLD 3.80 m 定员 COMPLEMENT 26P
设计吃水D DESIGNED DRAFT 3.10 m 自持力 ENDURANCE 60
DAY
肋距S FRAME 0.50 m 续航力 ENDURANCE abt.8500NMILE
主机功率 POWER OF MAIN ENGINE1030kW 无限航区UNLIMITED
AREA
设计航速VSPEED 12.50 kn
4kn时拖力T THRUST OF 4kn ~12.5t.
The stern ramp trawlers vessel is to be designed and constructed for trawling in West Africa,on which fish caught to be preserved in refrigerated fish hold after freezed through freezing hold.The healthful requirements of fish processing and working area shall comply with EU standards. The vessel is to be unlimited navigation areas., The vesselis a steel, single deck, double bottom, long forecastle stern ramp trawler vessel, withwheel house located forward, engine roomlocated afterward, engine room casing located broadside.The vessel is to be equipped with one main engine, major diameter ducted propeller, one rudder and one gantry. The stern shall be of wide and flat deck suitable for stern ramp, roundstern transom plateand bulb stern. The vessel shall have a raked stem with SV bulbous bow.

Fuel oil tank abt.220.840m3 (185.5 t, including service oil tank) Fresh water tankabt. 23.6m3 Fresh water generated tank 5.20m3 Refrigerated fish holdabt. 211m3 Quantity of frozen fish (1.2t×2×4) 9.6 t/24h Fuel oil service tank2.5m3 Hydraulic oil tank3.6m3 Lubricating oil tank2.5 m3 Slop tank 1.43m3.
The maximum deadweight is to be about 245.8t (DWT≈245.8t) at full load condition, including fish product, fuel oil, fresh water, lubricating oil, crews, luggage, supplies, spares &tools, 10 / 68 among which the maximum loading capacity for frozen fish product is to be about 116t. 本船总吨 GT≈343,净吨 NT≈103。 The tonnage of the vessel is to be about 343t (GT≈343t), net tonnage to be about 103t (NT≈103)..

Refrigeration system especially designed for the ocean stern ramp trawl frozen fishing boats. To keep the fish quality, the ship refrigerate system equipped with two fast frozen tablets, capacity of 1200 kg/per , fish out of the frozen temperature is below -25 ℃。If freezing 4 times a day calculated that the fish freezed not less than 9.6 tons one day (24 hours). Also has two -25 ℃fish refrigerating room and the fish tank total volume is ~ 235 m3; In the frozen fish hold ,the evaporator is used with outside 38 x 3.5 galvanized seamless steel pipe bending coiled coil.
