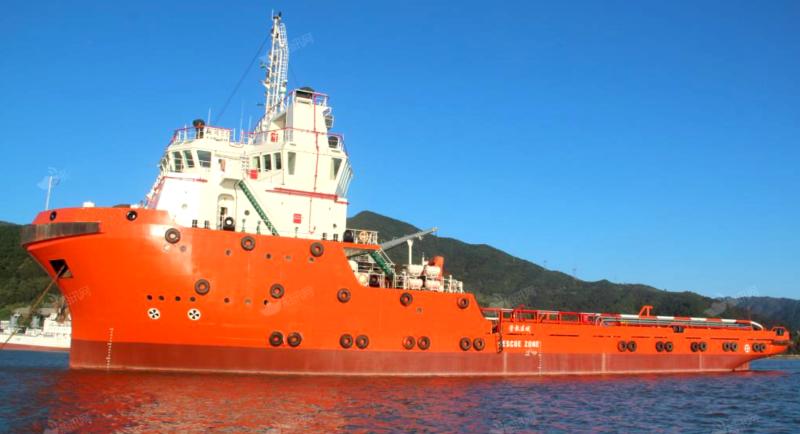

[For Sale] 105,600 hp AHTS Multipurpose Tugboat for Sale & DP1

VESSEL INFO

• Offer type Ship for sale

• Type Tug/Support

• Classification China Classification Society

• Year of construction 2012

• Length 73.6m

• Width 17.2m

• Depth 7.5m

• Asking price Price on request


DESCRIPTION

[For Sale] 105,600 hp AHTS Multipurpose Tugboat for Sale & DP1
Ice Class: Ice Class B
Class: CC (Unlimited Navigation Area)
Type: Tugboat | Offshore Supply | Maritime Rescue | Class 1 Fireboat
II. Main Dimensions & Tonnage
Overall Length: 73.60 m
Beam: 17.20 m
Depth: 7.50 m
Full Load Draft: 6.20 m
Gross Tonnage: 2835 GT
Deadweight Tonnage: 2300 DWT
III. Sailing Performance
Maximum Speed: 14.30 knots
Economic Speed: 11.50 knots
Bollard Pulling Force: 131.38 tons
Dynamic Positioning: DP1
IV. Deck Cargo Capacity
Deck Area: 560㎡
Deck Cargo Capacity: 1000 tons
Deck Load: Standard 5t/㎡, Reinforced Area 10t/㎡
V. Liquid Tank Volume
Fresh Water: 521.99 m³
Drilling / Ballast water: 767.91 m³
Light diesel oil: 827.46 m³
Bulk liquid cargo: 200 m³ (4 tanks)
Mud/Brine: 427.76 m³
Transport rate: Fresh water: 100 m³/h @0.8 MPa
Ballast water: 100 m³/h @0.9 MPa
Diesel oil: 100 m³/h @0.8 MPa
Bulk liquid cargo: 75 t/h @0.56 MPa
Mud: 55 m³/h @1.8 MPa
Brine: 22 m³/h @1.2 MPa
VI. Accommodation and Staffing
Crew berths: 28 people
VII. Power and Propulsion System
Main engine: Guangchai 8320ZCd-4
Configuration: 1942 kW × 4 units
Total power: 7768 kW / 10560 HP
Propeller: CPP adjustable 4-blade propeller Hamilton Generator Sets
Main Generator: 350kW × 2 units (Cummins)
Shaft-Driven Generator: 1440kW × 2 units
Emergency Generator: 120kW × 1 unit
Side Thrusters
First Side Thruster: 90KN/550KW and 62KN/315KW
Stern Side Thruster: 62KN/315KW
VIII. Towing & Anchoring Equipment
Towing Cable Helicopter: YTL1500 Jiangsu Jianghai
Main Towing Cable: φ64mm × 1000m
Anchor Cable: φ48mm × 300m
Shark Claws / Chain Stoppers: 300 tons
Rear Drum: L5000×D2000mm, Safe Load 300 tons
IX. Firefighting & Pollution Prevention
Fire Pumps: 1570m³/h × 2 units
Fire Monitors: 1200m³/h × 2 units Platform, with water curtain system. Pollution prevention: incinerator, domestic sewage treatment unit (suitable for 30 people), 1m³/h oil-water separator.
