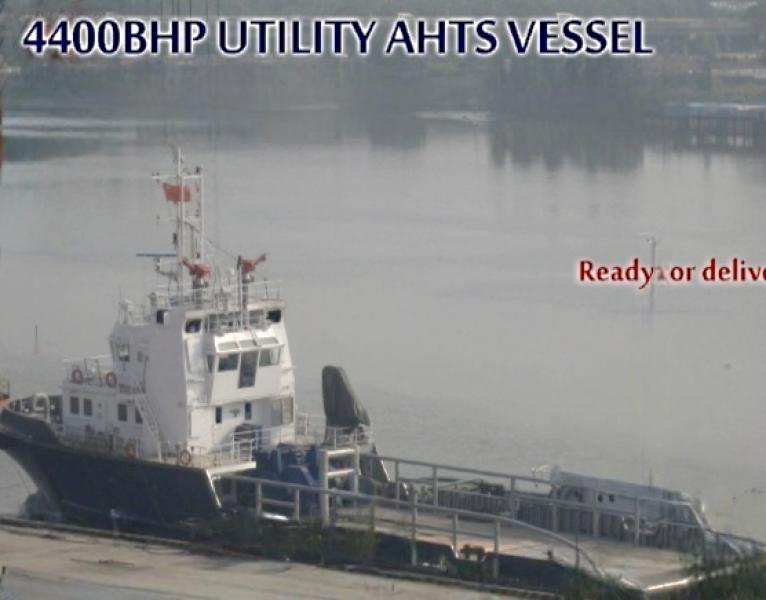

【FOR SALE】4400BHP Multi‑purpose Anchor‑Handling Tug / Supply / Standby Vessel (AHTS) |

VESSEL INFO

• Offer type Ship for sale

• Type Offshore Supply Vessel

• Classification Bureau Veritas

• Year of construction 2026

• Length 42m

• Width 11m

• Depth 4.9m

• Asking price Price on request


DESCRIPTION

【FOR SALE】4400BHP Multi‑purpose Anchor‑Handling Tug / Supply / Standby Vessel (AHTS) |
## 1. GENERAL INFORMATION
| Item | Specification |
| Vessel Type | Multi‑purpose Anchor‑Handling Tug / Supply / Standby Vessel (AHTS) |
| Flag | Hong Kong |
| Project Status | Under Construction, Expected Delivery 2026 |
| Shipyard | China Shipyard |
| Classification Society | Bureau Veritas (BV) |
| Class Notation | ✠HULL ✠MACH, Tug, Special Service‑Anchor Handling Tug / Offshore Support Vessel / Standby Vessel, Fire Fighting Ship 1‑Water Spraying, Unrestricted Navigation |
| Navigation Area | Unrestricted World‑wide Navigation |
| Approved Complement | 26 persons |

## 2. MAIN DIMENSIONS & CAPACITY
| Item | Specification |
|---|---|
| Length Overall (LOA) | 42.00 m (excluding bow rudder fenders) |
| Breadth Moulded (B) | 11.00 m |
| Depth Moulded (D) | 4.90 m |
| Cruising Draft | 3.50 m |
| Maximum Offshore Draft | 4.15 m |
| Service Speed | Approx. 12.50 knots |
| Main Deck Area | Approx. 160.00 m² |
| Deck Cargo Capacity | 100.00 t |
| Deck Strength | 5.00 t/m² |

### Liquid Tank Capacity
| Tank Item | Capacity |
|---|---|
| Fuel Oil Tank | 356.18 m³ |
| Fresh Water Tank | 83.31 m³ |
| Lube Oil Tank | 3.24 m³ |
| Gear Oil Tank | 0.87 m³ |
| Foam Tank | 9.26 m³ |
| Oil Spilt Dispersant Tank | 5.88 m³ |
| Oily Water Tank | 3.13 m³ |
| Residual Oil Tank | 3.13 m³ |
| Domestic Sewage Tank | 14.45 m³ |

## 3. PROPULSION & THRUSTER SYSTEM
- **Main Engine**: Cummins QSK60‑M, 2 units, 2200BHP (1641 kW) @1800 rpm
- **Gearbox**: Twin‑Disc MGX5600, 2 units, reduction ratio 5.76:1
- **Main Propeller**: 4‑Blade Fixed‑Pitch Propeller, 2 sets, made in China
- **Bow Thruster**: JYG16FP, 1 unit, 200 kW; propeller diameter 1100 mm, max thrust 3.5 t
- **Steering Gear**: ME‑Singapore electro‑hydraulic steering gear, torque 3.5 t·m

## 4. ELECTRICAL PLANT
- **Main Generator**: Cummins 240MXDG, 2 units, 240 kW each, 400V‑50Hz‑3Φ
- **Emergency Generator**: CCFJ‑60Y, 1 unit, 60 kW, 400V‑50Hz‑3Φ
- Power supply: 400V / 50Hz / 3‑phase AC
