For Sale: Catamaran Ro-Pax Ferry​​ Capacity: 200 passengers & 45 vehicles/cars.

VESSEL INFO

• Offer type Ship for sale

• Type Passenger Landing Craft

• Classification China Classification Society

• Year of construction 1998

• Length 53.6m

• Width 17.4m

• Depth 5.2m




• Asking price $ 600 000


DESCRIPTION

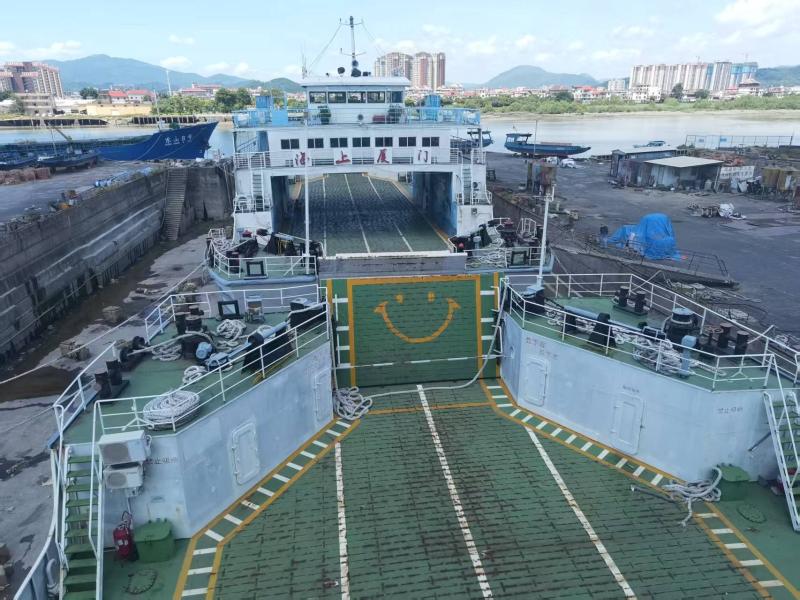

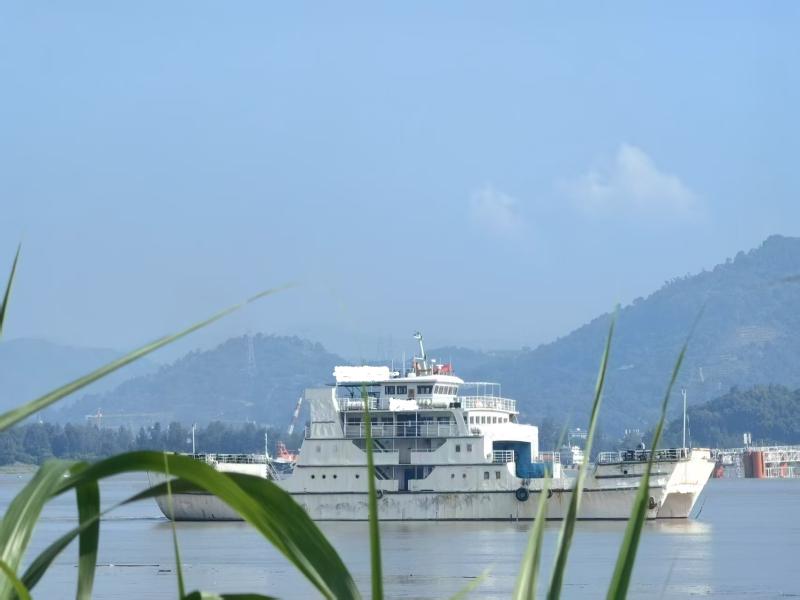

For Sale: Catamaran Ro-Pax Ferry​​
Capacity: 200 passengers & 45 vehicles/cars.
We are selling 45 ro-ro passenger ships with a capacity of 200 passengers per vehicle.
Flag:China.
Class:CCS.
I. Basic Parameters of Ships
Vessel type: Passenger ferry/Vessel type description/Class III passenger ship.
The maximum number of crew members is 8, the number of passengers is 200, and there are 45 vehicles.
Date of laying the keel/Completion date of construction: April 1, 1998 / June 22, 1998 / Start date of renovation/Completion date
Shipbuilding: China Shipbuilding Repair and Construction Corporation.

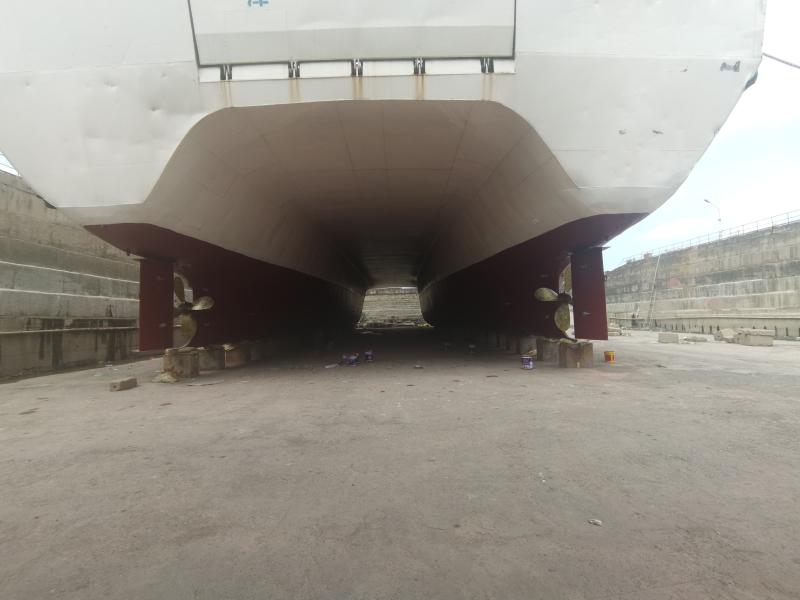

Ii. Hull section
Total length: 53.60 meters/Length: 48.00 meters/Full-load waterline length: 48.00 meters
The ship is 17.40 17 meters wide
/ Type depth: 5.2011 meters
The no-load draft is 2.045 m/
The full-load draft is 2.700 meters.
The full-load displacement is 899.100 tons and the empty displacement is 618.700 tons.
Hull material: Steel/watertight transverse bulkhead number: 00.
Structural type: longitudinal and transverse hybrid frame type/Number of cargo holds: 0.
Double-layer bottom position/water inlet Angle position/main deck sill/anti-sinking property/complies with 2004 regulations.
GRT1224/NRT636.
Iii. Anchor Equipment
Name Type Weight (kg) Quantity:
Stone bow key Hall anchor 900.00
Left bow key Hall anchor 900.00
Left bow anchor 1 high grip anchor 1080.00
Name Model Power (kW) Quantity
The right bow anchor crane is vertical electric
0
Left bow anchor machine vertical electric 6
Left bow anchor crane DMJE-28-2-4511
Name Diameter (mm) Length (m) Grade Material
Right bow anchor chain 28.00-175.00 AM grade 2 M20Mn anchor chain
Left bow anchor chain 34.00-175.00 AM grade 2 M20Mn
Left bow anchor chain 1 28.00 175.00 AM2 grade chain steel
Iv. Rudder Equipment
Number of rudders (main steering device type: electric hydraulic /
Types of emergency energy and auxiliary steering device types.
V. Propulsion Device:
Main unit: 300.00KW /1000RPM@2 units /
December 5, 2008 Shandong Juli Co., LTD
Model X6170ZC-O5
Gearbox model: HCD400A.
1# Propeller Shaft 1 Intermediate shaft 2# propeller Shaft 2 intermediate shaft
Name: 160/140/160/140.
Operating area: A1 (Coastal).
